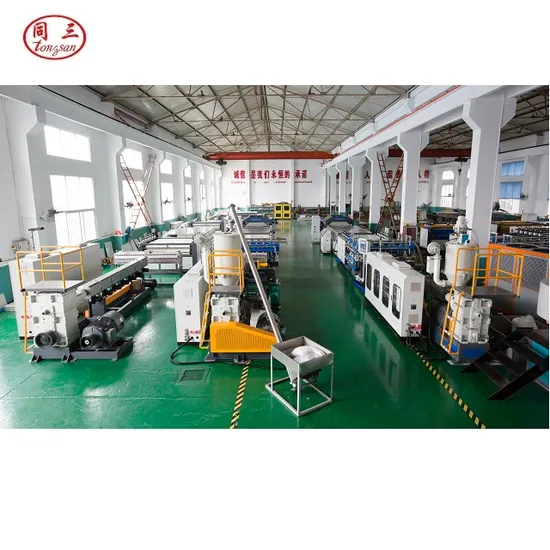

3 Roller Calender Design Plastic Sheet Machine for ABS PMMA PS PVC HDPE PP Sheet Production

Product Description

This PP hollow corrugated sheet making machine production line realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. PE/PP hollow grid plate is an ideal substitute for paper box in making packaging box. It is characterized by light weight, high intensity, dampproof, and anticorrosion. The width of the products is 1220-2100mm, and the thickness is 2mm-12mm.

Model	Sheet Width	Sheet Thickess	Extruder Model	Motor Power
TSGZB-1400	1250 mm	2-6,8-12 mm	100/36	55-75 kw
TSGZB-1860	1700 mm	2-6,8-12 mm	120/36	75-90 kw
TSGZB-2300	2150 mm	2-6,8-12 mm	120/36	90-110 kw
TSGZB-2600	2450 mm	2-6,8-12 mm	120/36	90-110 kw
TSGZB-3000	2800 mm	2-6,8-12 mm	150/36	132 kw
TSGZB-2600(F)	2450 mm	2-6,8-12 mm	120/36&80/36	110+37 kw

Extruder for PP hollow corrugated sheet making machine
The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
1, auto spiral screw feeder
2, drying hopper
3, siemens motor
4, aluminum heater

Mould for PP hollow corrugated sheet making machine
Mould adopts high-quality alloy steel and throttling device to ensure even pressure of feed influent at the mould lips, and also differential action of up-down piece guarantee even thickness of the plate.
1, customized width and thickness
2, with hydraulic screen changer
3, with melting pump
4, high quality mold with precision thickness control
Calibrating table for PP hollow corrugated sheet making machine
Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, which ensures calibrating precision. Vacuum system composes two independent subsystems and each is equipped with several fixed circulating vacuum lines of three-point type. Meanwhile, each line carries vacuum regulating system and vacuum display system that realize even and stable vacuum degree of plate surface.
Haul off device for PP hollow corrugated sheet making machine
There are two tractors. The first one is high power, high reduction ratio, multi-roller type, well low-speed operation, high traction and is able to draw the plate up from the calibrating table evenly and synchronal. The second one is designed to remove stress, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
Heating oven for PP hollow corrugated sheet making machine
the heating oven device is necessary for the PP hollow sheet to remove the stress of the sheet, the heating oven should be made by 304 stainless steel, the heating oven is equipped with separately temperature control system for each zone to ensure the heating to be uniform, 4 meter lengths of heating oven is necessary.
Corona treatment for PP hollow corrugated sheet making machine
The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.

Auto Cutter for PP hollow corrugated sheet making machine
Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.
Control cabinet for PP hollow corrugated sheet making machine
1, ABB inverter motor
2, Siemens contractor
3, Omron temperature control
4, English button
5, ventilation on each panel
6, number mark on each cable
