Xj-150 Hot Feeding Rubber Extrusion Machine /Cold Feeding Extruder Machine

Product Description

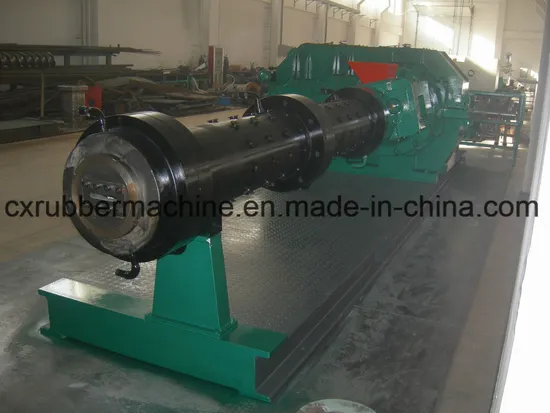

XJ-150 hot feeding rubber extrusion machine /cold feeding extruder machine
1. SGS, ISO9001: 2008, CE certification3. Low noise, high safety and convenient5. Competitive price6. Customizable7. Delivery within 30 days.8. Sell to 126 countries on 6 continents.Rubber Extruder Machine with Frequency Converter
Basic introduction Of XJD-65/115/120/150/200 Hot Feed Rubber Tread Extruder /Cold Feeding Extruder Machine

XJD-65/115/120/150/200 Hot Feed Rubber Tread Extruder /Cold Feeding Extruder Machine is used to extrude tread, inner tube, hose, and a variety of rubber type strips of rubber machinery, and also for covering the cable and wire products. Common-screw extruder, plastic material with the rotation of the extruder screw it at work, mixing in a drum machine, mixed plastics and pressed, and then move to the carriage direction, and finally squeezed from the mouth a certain shape of the product.
2.XJD-65/115/120/150/200 Hot Feed Rubber Tread Extruder /Cold Feeding Extruder Machine is one of the basic equipment for the rubber industry, is one of the key equipment of the impact on product quality plays a very important role in the production process of the tire and rubber products. The development experience of the foreign rubber extruder piston extruder, screw-type heat feed extruder, the common cold feed extruder, main and auxiliary threads cold feed extruder, cold feed exhaust squeeze machine, pin cold feed extruders, compounding extruder stage.
Product Features:
1. Durable machine body with sufficient raw material applied.
2. Reliable machine quality with superior accessories chosen.
3. Latest machine design
4. Less maintenance needed
5. Easy installation
6. Environment protection
7. High safety configuration
8. High automation
9. High efficient and superior mixing performance.
10. Low power consumption & labor saving.
. Technical Parameters:

Type and spec.	XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw dia.(mm)	65	85	115	150	200	250
L/D	4	4.8	4.8	4.4	4.4	4.5
Screw rotational speed(r/min)	20.27 35.47	27.40 53.72	20~60	27~81	22.4~67.2	19.7~59.1
Motor power(kw)	7.5	17	30	15.3~55	33.3~100	33.3~100
Overall dimension L×W×H(mm)	1600×675×1053	2050×735×1275	2770×665×1300	3585×814×1470	4549×1140×1750	4950×1150×1483
Capacity (kg/h)	50~80	62~270	100~350	800	1500~2200	3500
Total weight(t)	1.5	2.6	3.3	4.5	7.21	9

FQA-Problems for customer concern:
About machine performance quality
1. Q: How to guarantee the quality of outsourcing parts? A: First choice more than 4 suppler by tender, There are strict system and process for inspecting outsourcing parts. And there are outsourcing inspectors, after inspection, qualified goods, labeling and storage. Not qualified, return.2. Q: Which brand of electric part? A: Use world famous brands, Siemens, Omron, Toshiba, Schneider, ABB Customer can specify the brand.3. Q: Which PLC: A: Siemens, Omron, Mitsubishi4. Q: How to control the quality? A: There are inspectors for inspecting equipment quality and performance, after a ssembly, machine run continuously for at least 12 hours at one time, Total running time should be not less than 48 hours.
About installation 1. Q: When the guide engineer arrive at customer's factory? A: If need installation on site, engineer will arrive at factory within one week after machine arrived at factory.
About after-sales service 1. Q: What is the warranty time? A: 5 years after machine arrived at factory2. Q: How to solve the problem? A: Within half an hour after getting customer' problem, inform the solution way, there are three ways for different conditions. 1, Which can be solved by phone or Email, it will be solved in two hours. 2. Which can be solved by Remote Control, it will be solved within four hours(machine is equipped by Remote Network Control Problem). 3. Which need solve it on site, engineer arrive at factory within one week(in the two years warranty date, engineer has the visa any time of the country where the machine.
