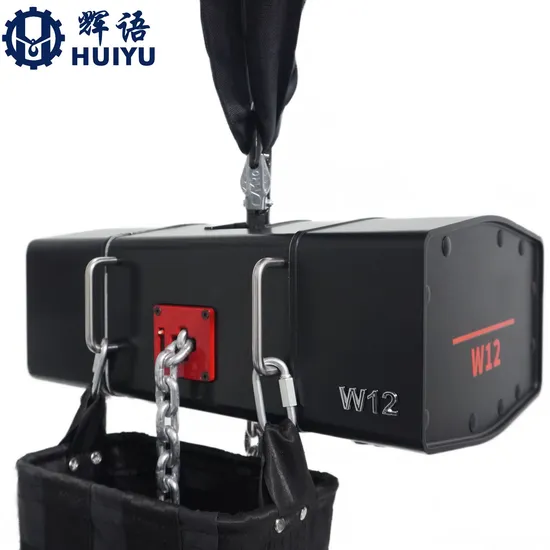

Chinese Suppliers Strong Transporting 2 Ton Electric Chain Stage Hoist with Low Price

Product Description

Product description:
The Electrict Chain Hoist features a simple, efficient and economical design. Its compact design, low headroom and lightweight steel construction makes this hoist easy to install and operate , even in confined spaces.
1.Chain: adopts high strength chain and high precision welding technology,meet ISO3077-1984 international standard;fits for gusty overload work conditions;takes your hands a better feeling;multi-angle operation(with 45°).
2.Hook: made of high-class alloy steel,it has high strength and high security;by using new design,weight will never escape.
3.Limit Switch: using limit switch component in designation to protect chain and ensure security.
4.Components: main components are all made of high-class alloy steel,with high precision and security.
5.Framework: slight design and more beautiful;with less weight and smaller work area.
6.Plastic Plating: by adopting advanced plastic plating technology inside and outside,it looks like a new one after years of operation.
7.Encloser: made of high-classed steel,more firmly and dexterous.
Details of product:
1. Electric motor partial outer cover
High strength aluminum shell through compression casting formation.
Features: Solid and light, Fast release heat, Continuous use, Enclosed structure. Can be used in the chemical plants, electroplating factories, and other places.
2. Side magnetic braking device
This masterly structure ensure the hoist absolutly safty when the power off. And ensures it is safe when has excess load. Also it combine to the motor braking as the double brake system to strengthen security and durability.
3. Gear
The gear made of alloy steel and through the heat treatment
4. Antiphase protector
Advatages: When power-supply wiring mistake, the control circuit is unable to move.
5. Hooks
They are made by hot forging and heat treatment.
6. Chain
It is made of FEC80 ultra strong heat treatment alloy steel.
Advatages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.
7. ISO: M4 /FEM: 1AM(M5 customized available)
Insulation grade: F
8. Protection class (hosit and push button): IP54
9. Powder supply: 3 phase, 200-600v, 50HZ
10. Noise (single/ double speed): 81dB.
Specifications as belows:

Product parameters- 5 ton portable electric chain hoist,construction hoist wireless remote control
Model HSY	Capacity TON	Lifting Height M	Lifting Speed M/MIN	Lifting motor					Drive motor
				Power KW	Rotational Speed R/MIN	Ph ase	Voltage V	Frequency HZ/S	Power KW	Rotational Speed R/MIN	Running speed M/MIN	Ph ase	Voltage V	Frequency HZ/S
01-01	1	3/9	6.8	1.5	1440	3	380/220	50/60	0.4	1440	11/21	3	380/220	50/60
02-02	2	3/9	3.4	1.5	1440	3	380/220	50/60	0.4	1440	11/21	3	380/220	50/60
2.5-01	2.5	3/9	6.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60
03-02	3	3/9	5.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60
05-02	5	3/9	2.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60

Detailed image:
Company info:
Baoding Huiyu Hoisting Machinery Plant 's main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.
As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our lifting equipment includes hoist chains, Chain block and Electric hoist are a guarantee of quality, innovation and safety.
Advanced technology, excellent talents and high quality products make Baoding Huiyu Hoisting Machinery Plant the ideal choice for you.
Please don't hesitate to contact to us!

We sincerely hope to build a cooperative and mutual beneficial business relationship with you!
