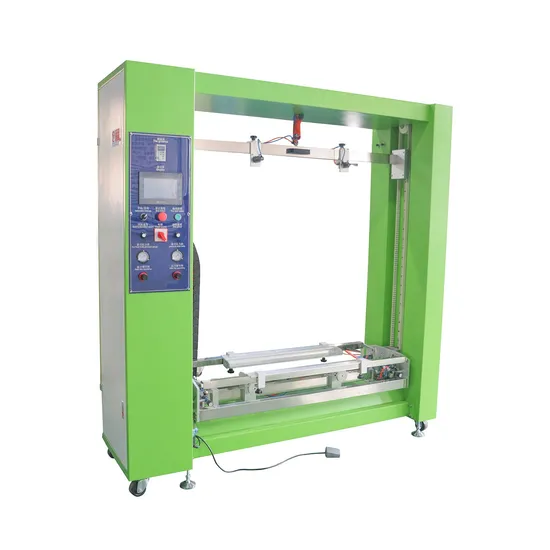

Automatic precision screen coating machine
Scope of application:
This series is suitable for high precision emulsion coating of screen printing screens.

SOLAR PHOTO VOLTAIC PRINTING INDUSTRY	CIRCUIT BOARD PRINTING INDUSTRY	LIQUID CRYSTAL TOUCH SCREEN INDUSTRY
ELECTRONIC INDUSTRY	PRINTING&DYEING TEXTILE PRINTING	GLASS PRINTING

Character:1)Operation control system included the PLC programmable controller and the HMI human-machine interface. 2)Through the touch screen automatic operation setting, the worker can make high-quality precision screen.
3)The screen frame release/fix is performed by the foot switch which controlled the air pressure chuck.
4)Coating speed, coating time, and single and double-sided coating can be set freely.
5)Configure the pressure regulator. The coating thickness can be controlled by setting the coating pressure and the number of coatings. 6)Before the end of the stroke, automatically decelerate and apply to the frame 20mm away from the frame, no need to fill the edge.
7)Low vibration and no corrugation during coating,equipped with special steel for rails,
8)The operating system presets Chinese/English characters, multiple coating modes, and detailed parameter settings.
9)The high-precision aluminum photosensitive ink fountain with special corrosion-resistant treatment fits perfectly with the coating structure without gaps, keeping the coating smooth and even.Automatic coating steps(Operation Instruction) 1. Turn on the power switch button, adjust the scraper holder to the appropriate position, put the scraper in the scraper position and fix the scraper, then evenly put the photosensitive glue on the scraper, put the screen frame on the screen frame and adjust it to the appropriate position, then step on the foot pedal to lock the screen frame. 2. Switch the HMI screen to the automatic operation interface, adjust the coating rise and fall speed; the number of coating times on the front and back sides. 3. Adjust the coating pressure on the front and back sides. 4. Press the start button, and the equipment starts automatic coating. 5. It stops automatically after the set number of coatings is completed. Product Parameters
Equipment parameters:

Maximum frame size(L*W)	1000×1200MM
Maximum coating size(L*W)	900×1100mm
Applicable frame thickness	15~55mm
Preset coating times	1~10 times
Coating speed	steplessly adjustable
Longest ink bucket length	900MM
Shortest ink bucket length	150MM
Working pressure	0.5Mpa
Applicable power supply	2P 220v/0.5kw/50Hz
Net weight (about)	400kg
Outer Packing Size(L*W*H)	2060x740x2150MM
Gross weight(about)	650kg

PRODUCT FEATURES
Main component configuration:
Drive motor, screen lift motor, moving linear guide, travel timing belt, drive timing belt, cylinder, linear bearing, other bearings, programmable controller, inverter controller, low voltage control appliance, instrument, sensor, photoelectric switch, caster and so on.
Details:
The Motor is used in conjunction with the reduction gearbox to drive the steel wire synchronous belt and synchronous wheel to slide on the linear guide rail to achieve balance and stability, which can meet the high precision and is suitable for the market needs of various industries.
Adopts the vertical lifting beam structure as the frame fixing mechanism , and the pneumatic quick clamping mechanism can quickly and effectively fix the screen of any size firmly on the coating bracket, and can be equally convenient after coating. Take out the screen easily.
High-quality Air Source Treatment Unit effectively guarantees the quality of the compressed air and ensures the use environment of the pneumatic components, improving stability and extending use life.The operating system uses the man-machine interface as the system setting and basic operation channel, and the button acts as a common operation channel, which effectively improves the accuracy and convenience of operation, and integrates the air pressure control interface.High-quality integrated casters can adjust the level of the whole machine under any circumstances, to make the coating work environment more excellent. Four fine adjustment functions in total, you can adjust the thickness of the squeegee, and get a more accurate screen.
The use of a foot switch in the hands of the fixed screen operation allows the operator to take the screen with both hands, making it easier and more subtle, improving safety and efficiency. PACKING&SHIPPING
