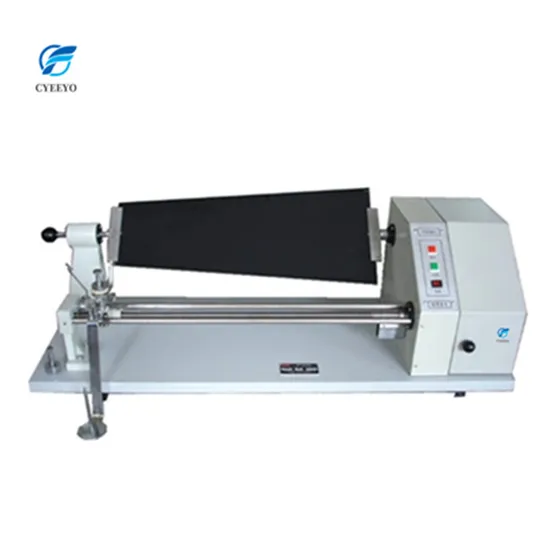

Factory Hot Sale Yarn Examining Machinery Tester Instrument ASTM D2255
| US$1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CY-381A
Automatic Grade
Automatic
Appearance Quality Testing Machine Type
Uster Evenness Tester
Fabric Style Testing Machine Type
ASTM D2255
Technological Characteristic Testing Machine Type
Yarn Twist Instrument
Textile Fabric Testing Machine Type
Fabric Density Mirror
Universal Textile Testing Machine Type
Needle Detector
Textile Simulated Environmental Testing Machine Type
Colorimeter
Certification
CE, ISO9001: 2000, TUV SGS BV
Condition
New
After-sales Service
Lifelong
Specification 1
250×180mm/250×220mm
Density
7,9,11,13,15,19(Root/Cm)
Speed
10~400r/Min Adjustable
Power
AC220V 50Hz 40W
Dimension
620×370×340mm
Transport Package
Plywood
Specification
75cm*65cm*70cm
Trademark
CYEEYO
Origin
Shan Dong
HS Code
9027500090
Production Capacity
100
Packaging & Delivery
Package Size
178.00cm * 98.00cm * 89.00cm
Package Gross Weight
98.000kg
Product Description
Factory Hot Sale Yarn Examining MachineryProduct Description
Application:
It is used to reel specified count yarn in show board to evaluate the appearance of yarn.
Standard:
ASTM D2255 GB/T9996,GB/T 398,GB/T 5324,FZ/T 32004,FZ/T 32005,etc
Features:
Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test.
Various pitch to satisfy comprehensive requirements of different yarn linear density.
Equipped with alternative pre-tension (ref. picture).
Auto-stop function.
Adjustable winding speed.
Product Description
Application:
It is used to reel specified count yarn in show board to evaluate the appearance of yarn.
Standard:
ASTM D2255 GB/T9996,GB/T 398,GB/T 5324,FZ/T 32004,FZ/T 32005,etc
Features:
Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test.
Various pitch to satisfy comprehensive requirements of different yarn linear density.
Equipped with alternative pre-tension (ref. picture).
Auto-stop function.
Adjustable winding speed.
Technical Parameter:
| Model | CY-381 | CY--381A |
| Board size | 250×220mm | 575mm×250mm×160mm×3mm |
| Reeling density | 7, 9, 11, 13, 15, 19 wraps/cm, 20/45mm 7steps | |
| Rotate Speed | 0-350r/min | |
| Power supply | AC220V, 50Hz, 50W | |
| Dimension | 620×370×340mm | 1065mm×460mm×270mm |
| Weight | 20Kgs | 30Kgs |
