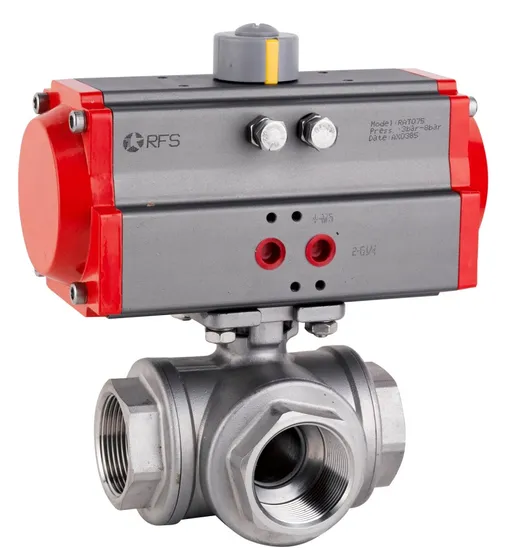

Pneumatic Actuator Double / Single Acting Water Air Oil Gas Liquid Solenoid 3 Way Control Stainless Steel 316 Thread Ball Valve

Product Description

Ball valve with Pneumatic Actuator - Three piece type

Data:1.Screw Type: NPT.BSPT.BSP,ISO-228 Class A Thread2.Temperature range : PTFE:-20~180 TMF :-50~270 RPTFE:-35~2103.Body Material :WCB,CF8,CF8M,TI,NI4.Suitable Medium:Water.oil,air and some corrosive liquid5.Nominal pressure :10000PSI (PN63 )For 1/2'' -4''6.Anti roll stem7.Locking device
Ordering Code
Overall Dimension

Mode	Inch	DN	d	L	h	b	ISO5211	Actuator
RBVP14-15	1/2''	15	12	72	8.5	9	F03/F04	RAT052DA
RBVP14-20	3/4''	20	15	82	9.5	9	F03/F04	RAT052DA
RBVP14-25	1''	25	18	90	11	11	F04/F05	RAT052DA
RBVP14-32	1-1/4''	32	25	128	12	11	F04/F05	RAT063DA
RBVP14-40	1-1/2''	40	32	137	16.5	14	F05/F07	RAT075DA
RBVP14-50	2''	50	38	154	16.5	14	F05/F07	RAT083DA
RBVP14-65	2-1/2''	65	48	185	20	17	F07/F10	RAT092DA
RBVP14-80	3''	80	55	212	20	17	F07/F10	RAT105DA
RBVP14-100	4''	100	74	254	22.5	19	F07/F10	RAT125DA

SPECIFICATION
Body meterial: CF8M,CF8,CF3M
Additive: PTFE PPL flexible graphite FEATURES
1. Unique design and beautiful appearance
2. High platform structure and connection to ISO5211, making installation of electric/pneumatic actuator
more professional.
3. Valve body is overlaid with reinforced bar, it can be permanently used in caustic media ,keep itself from
cracking and avoid the failure of parts of valve during installtion.
4. Grinding process of valve stem to reduce the moment of electric/pneumatic valve during assembly and
make it runmore flexible.
5. The body of carbon steel ball valve is phosphate coated, no fade ,rustless , durable and beautiful. Related Products
