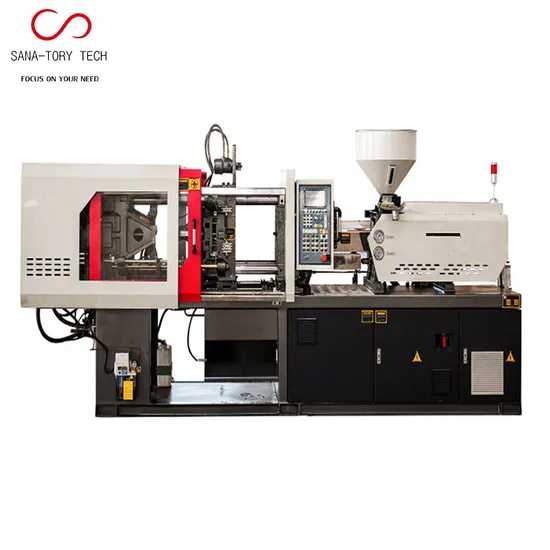

High Quality Injection Machine for Plastic Bucket Making

Product Description

Product Description
Product Parameters

ITEM		UNIT	DATA
Injection Unit	Screw Diameter	mm	85	90	95
	Screw L/D Ratio	L/D	21.2	20	19
	Injection Volume	cm3	2485	2786	3105
	Shot Weight	g	2261	2535	2826
	Injection Pressure	Mpa	182	163	146
Clamping Unit	Clamping Force	KN	6580
	Opening Stroke	mm	920
	Mould Thickness(Min-Max)	mm	350-860
	Space Between Tie-Bars	mm	915×915
	Ejector Force	KN	152
	Ejector Stroke	mm	250
General	Motor Power	KW	30+30
	Heater	KW	34
	Pump Pressure	Mpa	16
	Machine Dimension	m	9.3×2.3×2.4
	Machine Weight	T	28
	Mould Orientation Ring Diameter	mm	Φ200
	Nozzle Radius	mm	SR15

1, Save Power Consumption
Cooling phase, the motor does not need to work, power consumption is 0.
Compared with the traditional injection molding machine can save electricity <80%
2, Saving Water And Fuel
Compared with the traditional hydraulic power system of the hydraulic oil
consumption reduce
1/4 ~ 1/3, can achieve without cooling, thus greatly saving water.
3, Living longer 2~3 Double.
Machine Service Life Longer And Cleaner Working Environment
4, Improve the production efficiency
Quick Response And High Efficiency
Injection molding machine to achieve maximum output in 0.05 s
50 rpm can be up to 140 bar
High Repeat Precision, Save Raw Materials
Repeated injection precision can reach <=3%
Pressure Is Stable, Improve the Quality Of Molding
Pressure fluctuation quantity is less than + / - 0.5 bar
Application
Company Profile
FAQ
1.Are you a manufacturer or Trade Company?

We are a professional vertical injection machinery manufacturer.

2.How to choose injection molding machines?
Under normal circumstances, the following information must be collected before purchasing a vertical injection molding machine, and the more detailed, the better.
1. Mold size (length, width, and height), weight, exceptional design, etc., mold guide post-stroke, with or without hot runner and thimble device.
2. The characteristics of using plastics.
3. The size and weight of the injection product.
4. Molding requirements, including the production cycle of a few (a few holes in a mold), product quality requirements, product
appearance, size requirements, etc.
