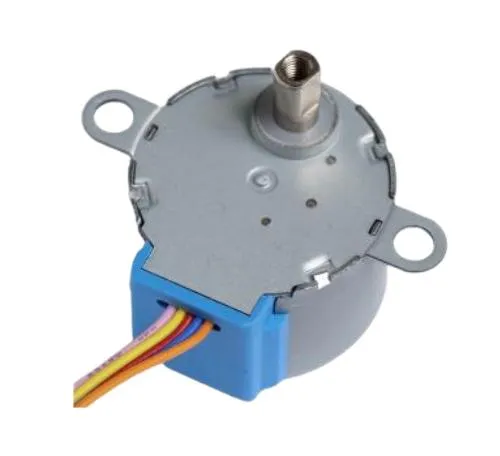

RoHS Reach Certification 4 Phase 12V Micro Permanent Magnet Round Stepper Motor for Home Appliances

Product Description

RoHS REACH Certification 4 Phase 12V Micro Permanent Magnet Round Stepper Motor for Home Appliances
1. Safe, low energy comsuption, low noise, good starting, stable performance, long life;
2. Strong power;
3. Rated voltage DC 5V/12V/24V optional, customization is welcome.
Typical used:
Monitor, air purifier, automatic door lock, integrated ceiling, refrigerator, air conditioner, dehumidifiers, electric toothbrush, medical beauty euipments, etc.
Specifications:

Model	28BYJ	Pull-in Torque	≥34.2mN.m(120Hz)
Rated Voltage(V)	DC12V	Detent Torque	≥34.3mN.m
Number of Phases	4	Insulation Resistance	>10Ω(500V)
Reduction Gear Ratio	1:64	Dielectric Strength	AC600V/1mA/1S
Step Angle	5.625°/64	Insulation Class	A
Pattern of Drive	4 phase 8 beat	Coil Temperature Rise	<40K(120Hz)
Direct Current Resistance	200Ω±7%(25ºC)	Noise	<40dB(A)
No-load Pull-in Rate PPS	≥600Hz	Weight	About 40g
No-load Pull-out Rate PPS	≥1000Hz	According to Class where tolerance is not given	GB1804-m
