New Technology Aotai U/230-Pet Injection Molding Machine

New Technology Aotai U/230-Pet Injection Molding Machine

US$10,000.00-400,000.00 1 Set (MOQ)

Basic Info.

Model NO.
U/230-PET
Plastic Type
Thermoplastic, Tube Head Injection
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Distance Between Tie Bars(Width)(mm)
520 mm
Ejector Force(Kn)
70 Kn
Warranty
1 Year
Open Stroke(mm)
475 mm
Oiltank Cubage
300 L
Screw Speed (Rpm)
0 - 125 Rpm, 125
Theoretical Shot Volume(Cm3)
397 Cm3
Injection Rate (G/S)
186 G/S
Distance Between Tie Bars
520*520 mm
Screw L/D Ratio
25, 25,25,25
Injection Weight (PVC)
495,611,739 G
Screw Diameter
45,50,55 mm
Mold Height(mm)
200 - 560 mm
Shot Volume (Theoretical)
397,490,593 Cm3
Power (Kw)
14.8 Kw
Specification
New
Trademark
AOTAI
Origin
Zhejiang, China
Production Capacity
500 Set/Sets Per Year

Product Description

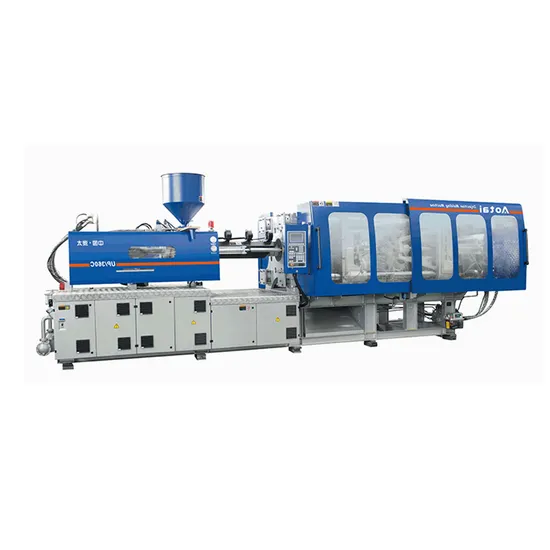

New Technology AOTAI U/230-PET Injection Molding Machine
Product Description
Specification
Machine weight
U/230-PET
Screw type
A
B
C
Screw diameter (mm)
45
50
55
Screw L/D ratio (L/D)
25
25
25
Shot volume (theoretical) (CM3)
397
490
593
Injection weight (PVC) (g)
495
611
739
Pump max.pressure (Mpa)
16
Pump motor power (servo)(KW)
18.5(23)
Number of heating area(Segment)
3+1
Machine dimension (L*W*H) (M)
5.75*1.58*2.28


Company Profile
NINGBO BEILUN ALLWAY MACHINERY Co., Ltd is located in Hailong Industry Park Development Zone (Beilun), Ningbo, China, which is attached to Hailong Group. Our company is found in 1995, cover dozens of more than 80, 000m2 production base and has a professional technology engineer team who has been long engaged in design and manufacturing each type of machine flexibly. Besides, our company owns advanced CAM manufacturing and production facilities, and the whole process from material, parts, assembly and testing instruments is in accordance with ISO quality guarantee system. The engineering technology center has achieved modern management of CAD simulation optimization design. PDM design process management and ERP operation system. Our company has got both 1st level energy conservation certification, ISO 9001-2008 certifacation & CE authentication for Injection molding machine (90-3000T), Die casting machine(Hot chamber 30-200T, Cold chamber 140-2000T, MG 140-2000T), Press punch machine (15-1000T). The OEM base of some Japan, Italy, Spain brand machines. Besides We have cooperation with European partner, to design our machine with innovation and perfection together, so as to bring more our European style machines to the market. Group main products: "WELLISH" DIE CASTING MACHINE "AOTAI"INJECTION MOLDING MACHINE "AOMATE"PRESS PUNCH MACHINE
Certifications
Production Process
Exhibition
Packing & Delivery
FAQ
1. What kind of plastic material can be used on this machine?
PP, PE, PS, ABS and other general material could be used on this machine.
If you have other special material such as PC, PMMA, PVC, please contact us for further information. 2. What is guarantee time for this machine?
12 months after installation or 18 months again B/L date.
3. What kind of shipping container for this machine?
Containere choose will depends on the different machine size . 20HQ,40HQ,40GP will suitable for different size machine.
4. How much is Engineer service charge?
We can send experienced technician to customer's country for guiding the installation and commission the machine, also train the
customer's employee. Customer need to afford technician visa charge, round trip air ticket expense, accommodation and
transportation in local. Also customer needs to pay USD 80 per days to technician as salary.
5. How long will be for installation and commission this machine?
If customer prepare all necessary thing such as power supply, water supply, hydraulic oil, plastic material, plastic mold,
installation and commission period will be within 7days including training customer's employee.
6. How many workers are needed to operate this machine?
One worker only.
7. What is the power consumption for this machine?
Power consumption is determined by the product. Different product requests different power consumption.
