Stainless Steel Flexible Hose Vertical / Horizontal Fitting Welding Machine

Product Description

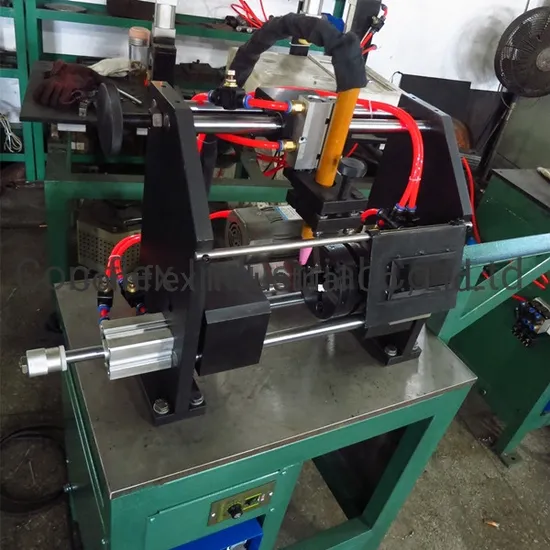

Stainless steel flexible hose vertical / horizontal fitting welding machine Vertical fitting welding machineSize range: DN8-32mm
Welding type: TIG welding
Welding position: Circumference
Compact structure
Torch automatic rotating
Horizontal fitting welding machine
Size range: DN8-32mm
Welding type: TIG welding
Compact structure
Part automatic rotating

Finished Products
Related Machines
A. DN8-32 mm Mechanical Hose Making Machine
Youtube link for machine running video: https://youtu.be/R2-e5nbLo5g
Specification of the machine

Machine Name.	Mechanical hose making machine
Technical Data	Application of the hose: natural and water hose Size range: DN8 up to DN32 Wall thickness: 0.15-0.3mm Production speed:2.5~3.5m/min Strip thickness: 0.18-0.3mm Material: sus304, 321 and 316L Power:4-7KW Outer dimensions: 8000*1100*1700
Packing details	Polywood box and standard pallet
MOQ	1 set
Warranty	1 year
Payment terms	T/T, L/C, D/P, Western union

Gas Hose Standard Size Specification

No.	Size	Tube OD (mm)	Wall thickness (mm)	Hose ID (mm)	Hose OD (mm)	Pitch distance (mm)	Width of the strip (mm)
1	DN 8	10.3	0.18	8	11.3	2.7	31.8
2	DN10	12.3	0.18	10	13.5	2.9	38.1
2	DN 12	15	0.18	12.3	16.3	3.2	46.6
3	DN 16	20	0.2	16.2	21.3	4.5	62.2
4	DN 20	23.5	0.25	20	25	4.5	73.0
5	DN 25	30	0.3	25	31.5	4.5	93.3
6	DN 32	39.5	0.3	33	41	4.5	123.2

Parts of the machine line

The whole machine line includes decoiler/winder, Panasonic welding machine, cutter, haul off unit, shaping unit, corrugating forming heads, take up.
B. Gas Hose Annealing & brightening line machine
The purpose of this machine is to make the flexible metal hose surface brighter and with high flexibility.
Main Parameters:

Rated power	60KW
Rated temperature	1100ºC
Rated voltage	380V
No. of phases	3
Temperature control zone	3
Furnace Size	51*6*5000mm (OD*thickness*length)
No.of hoses can be annealed at same time	3pcs
Material of furnace	310S
Length of furnace	4600mm
Sleeve length	51*3*6500mm
Material	sus304

C. Convolution compressing machine
To compress the corrugation for easy welding
F. Testing Bench
The machine is widely used for following hose testing: Water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing Size range: DN8-32mm Pressure: 6bar Max. length of the hose: up to 2000mm No. of hoses testing at the same time: 4-8pcs Testing medium: water
G. PVC extruder line
Hard Teeth Surface, type 173 Gearbox 18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor The screw & barrel are 38CrMoAl, Nitriding treatment,depth: 0.2-0.4MM, compression ratio:3.2,
Length : diameter: 25:1
with water cooling system Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds Size range: DN8-32mm
H.Vacuum PVC coating line
Rated Power: 60KW Rated voltage: 380V Rated temperature: 300 ºC Frequency: 50HZ Cylinder: ¢ 600X4 meters Cylinder moves: Manual Cylinder seal forms: with silicone rubber seal Vacuum pump: The 2X-30 rotary vane vacuum pump Max. length: 3m Heating element: 30 Pcs of stainless steel electric heating pipe
Our Machine Package
Polywood package with tray
Machine training
Our Company
Comflex Industrial Co., Ltd. is professional manufacturer of all types of metal flexible metal hose and hose making machinery, such as corrugated metal hose, square lock and interlock hose/ conduit and machiens with more than 35 years of experience. The hoses are widely used in many industries: gas hose, water hose and wire & cable protection circuit, ect. Our products have been exported to many countries, such as Indonesia, Vietnam, UK, Australia, Canada, USA, Russia, Mexico, Poland, Japan etc...

FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-50mm
C: PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q: Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know the following information to quote you correct machinery:
1. Size range you want to make
2.The application of the hose you need, for instance, natural gas hose, water hose, air-conditional hose, etc..
3.Wall thickness
