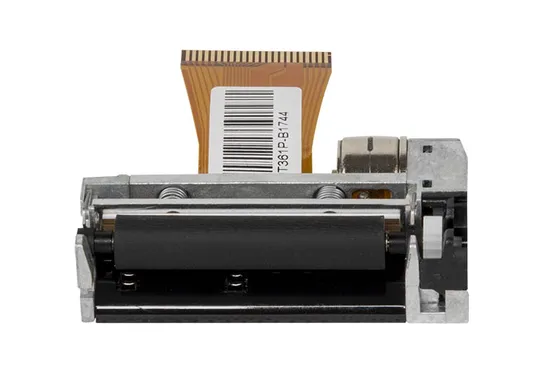

1.5 Inch PRT PT361 36mm Mini Printer Thermal Printer Mechanism for Handheld POS

Product Description

Product Description
1.5 Inch PRT PT361 36mm Mini Printer Thermal Printer Mechanism for Handheld POSOverview:
1. Low voltage supply
The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-10V.
2. Low volume
Compact and light The mechanism is compact and light, dimensions: 57.55mm (width) * 32.7mm (depth) * 15.10mm (height)
3. Printing with
High resolution A high-density printer head of 8 dots/mm makes the printing clear and precise
4. High speed printing
According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 80 mm/ s (max.)
5. Easy paper loading
Detachable rubber roller structure makess the paper loading easier 6. Low noise Thermal line dot printing is used to guarantee low noise printing.Application:
1.Cash registers
2.EFT POS terminals
3.Portable terminals
4.Measuring devices
5.Medical equipment
6.Taxi meters
7.Weighing scalesProduct Parameters
1.5 Inch PRT PT361 36mm Mini Printer Thermal Printer Mechanism for Handheld POS

Series Model	PT361
PRINTING CHARACTERISTICS
Print Method	Direct line thermal
Resolution	8 dots/mm
Max. Printing Width	36mm
Number of Dots	288
Paper Width	45.5±0.5mm
Max. Printing Speed	80mm/s
Paper Path	Curved
DETECTION
Head Temperature	By thermistor
Paper Out	By photo sensor
Black Mark	By photo sensor
Platen Open	NA
POWER SUPPLY
TPH Logic Voltage	2.7V-5.5V
Drive Voltage	4.2V - 8.5V
PEAK CURRENT
Head(Max.)	4.0A(8.5V/64dots)
Motor	Max. 420mA
RELIABILITY
Pulse Activation	100 million
Abrasion Resistance	50KM
ENVIRONMENTAL
Operating Temperature	0 - 50ºC
PHYSICAL CHARACTERISTICS
Dimensions(W*D*H)	57.55*32.70*15.10mm
Mass	36g

Packaging & Shipping
Lead Time:2 Inch 58mm Thermal Printer head JX-2R-06 Compatible with FUJITSU's FTP-628MCL054 Thermal Printer mechanism For POS Printer

Quantity(Sets)	1 - 2000	>2000
Est. Time(days)	5	To be negotiated
