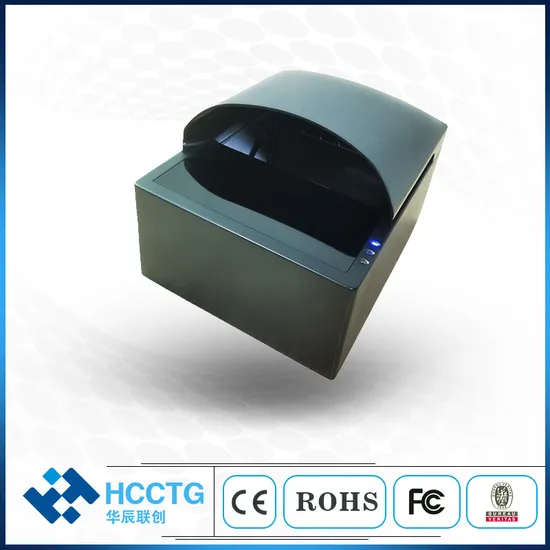

1D 2D Mrz Ocr Passport Scanner Machine RFID Identity Document Reader Manufacturer for Security Access Control (PPR100C)

Product Description

1D 2D Mrz Ocr Passport Scanner Machine RFID Identity Document Reader Manufacturer for Security Access Control (PPR100C) Product Description General
The PPR100C Document Reader inspects and images Machine Readable Travel Documents (MRTDs) in avariety of market segments.The new bar code feature makes it more widely used.This includes applications that are primarily focused on data capture opportunities in hotels, casinos, liquor stores, bars, bank, airport, customs, embassy, government, and rental car companies.
Features
Multiple document reading and imaging capability,Imaging in 24-bit color 400 DPI high resolution imaging Scanning window 92mm x 125mm Simple high level API for quick program development or detailed low level API for fine control of all reader functions OCR data capture Complete access to OCR / RFID data and images captured via Software Development Kit (SDK)
Specification

Reading Capability	ICAO compliant documents in near infrared (IR) per ICAO 9303 specification Parts 1-4
	ISO 14443 Type A and B and C contactless ICs at 13.56MHz Passports, e-Passports, ID cards, visas, etc.
Illuminations	Near IR B900, 860nm
	White visible, 430-680nm
	UV A 365nm
Resolution	Sensor: 3.1 Megapixels, CMOS, RGB 24 bit color system
	Standard 400 DPI image resolution
	USB 2.0 high speed compatible
E-Passport (RFID)	ISO 14443 Type-A and B and C using a PC/SC interface
	E-Passport support for ICAO 9303 LDS and PKI using included SDK
	All standardized rates, up to 848 Kbps, read-out times depend on RFID tag, operating system and amount of data stored in the chip
	PC/SC interface provides support to other card types such as Mifare™
Minimum PC Specification	2.0 GHz Intel Core i3
	2 GB DRAM
	USB 2.0 High Speed
	100 GB of Hard Drive
	Windows®7 operating systems, 32 and 64 bit Windows®10 operating systems, 64 bit
Status Indicators	Red - Read Error LED
	Blue - Ready LED
	Green - Reading LED
Maximum flexibility in systems integration	Software development kit provides easy migration to new reader; includes demos, code samples and utilities
Firmware Upgrade	Upgradeable firmware via USB 2.0 interface
	Configurable via USB 2.0 interface
	Non-volatile configuration
Standard Dimensions	Length: 19.2 cm
	Width: 16.3 cm
	Height: 9.5cm (without light shield)
	Net Weight: < 1.1 kg
	Gross Weight: < 2.1 kg
	Packing size: 37*26*25 cm
Operating Environment	Humidity: 20 to 95% (R.H. non-condensing)
	Temperature: 0°C to 50°C operating; -20°C to 50°C storage
Power	External 5VDC 2A
	Input voltage: 100-240VAC Frequency: 50-60Hz
Others	Comes with an IP50 rating for dust ingress protection
	Enables images to be accessed as BMP and JPG format
	Auto-triggering of document capture - presence of document is automatically detected

Applications Government Transportation Retail Financial Hospitality

FAQ 1.Are you a manufacturer?
Yes, our General Headquarters located in shenzhen.

2.Do you provide sample?
Yes, sample is available.The MOQ is one piece.

3.Is OEM or ODM available?
Yes. We are the factory directly.We can make it as your requirement.

4.Do you offer other relevant items?
Yes we do. We are offering barcode scanner, PDAs, thermal receipt printer, smart card reader and POS system.

5.What's the delivery time?
Generally, sample can be shipped in 2-3 working days after payment. For quantity, the leading time will be 1-4 weeks depend on exact quantity.

6.How about your warranty?
The buyer will enjoy 1 year warranty since buying from us.

7.What shipping methods do you provide and how long can I get the goods?
By Express: DHL UPS TNT FEDEX or ARAMEX EMS E-packing.
By Sea: Inform us the Sea Port to check which ship line.
By Air: Inform us the Airport to check which flight.

8.How will you control product quality?
We strictly control every detail of production, and every product is inspected by our QC team before delivery.

9.If I come across any problem during product using ,where i can get the support ?
We can provide 7*24 online service, please send all your questions to us, and we will give the professional and patient expliantion by email or call in time.
