Virgin Coconut Oil Extracting Tubular Oil Water Separator Vco Centrifuge Separator

Product Description

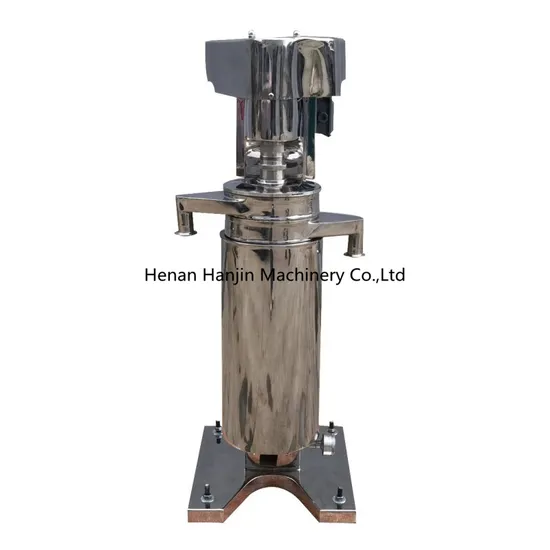

Virgin coconut oil extracting tubular oil water separator VCO centrifuge separator
Product description for tubular oil water separator machine
Oil-water separator: The oil-water separator uses centrifugal force to quickly separate immiscible liquids in the centrifuge due to different densities. This method is much shorter than gravity separation time. A device called an oil-water separator is commonly used to separate liquid solution components. Separation of two liquids with a difference in specific gravity, such as a machine that separates oil and water. The main principle of an oil-water separator is a device that separates water and oil using the principle of centrifugal sedimentation based on the difference in density between water and oil. Due to the different specific gravity of water and oil, they will be layered under the action of centrifugal force, and there are diversion holes on their respective layers, through which water and oil are separated.
Applications for tubular oil water separator machine
The oil-water separator is mainly used to separate various hard-to-separate emulsions. It is especially suitable for liquid and liquid separation with very little difference in two-phase density (specific gravity difference greater than 0.1%), and liquid, liquid and solid three-phase containing small amounts of impurities Separate.
Oil-water separator in the separation of biological products; fish oil, shrimp oil separation, seahorse oil separation, gelatin separation
Technical parameter for tubular oil water separator machine

Model		GF-105	GF-75
Drum	Inner diameter(mm)	105	75
	effective height(mm)	730	430
	Deposition volume(L)	6	2
	Speed (r/min)	16300	20000
	Maximum separation factor	15025	16770
Feed nozzle diameter(mm)		4.6.8.10	2.3.5
Material inlet pressure(Mpa)		>0.05	>0.05
Production capacity(kg/h)		≈1200	≈500
motor	Model	Y90L-2	Y90L-2
	Power (kw)	2.2	1.5
	Speed (r/min)	2880	2840
Size (L*W*H))(mm)		550*500*1650mm	500×400×1200
Weight (kg)		400	300
