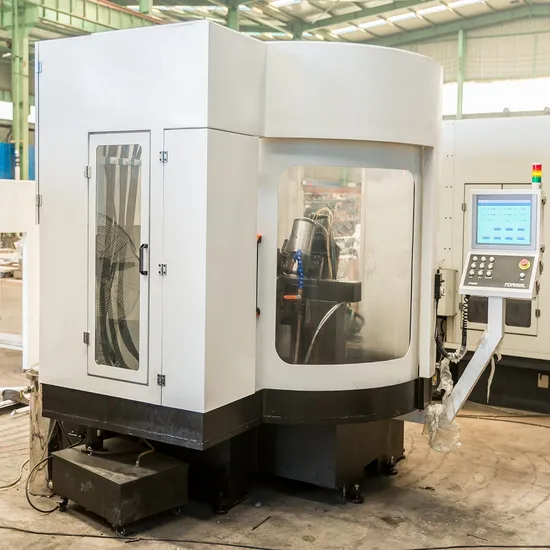

Top/Face/Chip Breaker Slot/Groove Multi Functions Cold Saw Blade Grinding Machine
| US$30,000.00-45,500.00 | 1 unit (MOQ) |
Basic Info.
Model NO.
TFN810
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Grinding Surface
Top/Face/Chip Breaker Slot/Groove
Weight
3680kg
Precison
<0.001
Power
5kw
Speed
6~30s/Tip
Top Wheel Size
125mm*32mm*16mm
Notch Wheel Size
125mm*32mm*9mm
Face Wheel Size
150mm*32mm*14mm
Saw Diameter
120~810mm
Hook Angle
-30~ 25
Top Angle
8~ 30
Bore Diameter
12~120mm
Pitch
2-80mm
Transport Package
PE Bag and Wooden Case
Specification
2500*1800*2200mm
Trademark
torsel
Origin
China
HS Code
8460310000
Production Capacity
100units/Month
Product Description
Top/Face/Notch Combined Functions Cermet-Tipped Cold Saw Blade Grinding MachineFAQ
1. What products do we have?
Four categories saw blade grinding machine:
1. economic type: normal accuracy, normal saw blade diameters, lower price, suitable for tct blade.
2. accurate type: high accuracy, large diameter saw blade can be processed, suitable for tct blade.
3. grinding machine with robot: robot auto picking and putting saw blade, suitable for mass production of tct blade.
4. cold saw blade grinding machine: highest accuracy, suitable for cermet tipped saw blade.
Except saw blades grinding machine, we also supply Measuring Projector, Side Runout Inspection Machine, Radial Runout Inspection Machine, Automatic Belt Polishing Machine, CNC Router Bit Grinding Machine, Automatic Tooth Seat Grinding Machine,etc.
2. What are the advantages of our circular saw blade grinding machine?
1) long service life: using quality cast iron base treated by high temperature tempering and vibration aging. no deformation and low vibration.
2) easy operation: CNC with friendly interface panel, all parameters can be set directly and stored directly. A machine can store up to 100 sets of data.
3) high efficiency: adjustable grinding speed, robot auto load, one person can operate several machines at the same time.
4) high accuracy: use quality machine components to realize high accuracy.
5) competitive price: price is very competitive for such good quality.
