High-Speed 5 Axis CNC Vertical Machining Center for Precision Engineering

Product Description

Product Description
Product Parameters

Item	Unit	HVM8	HVM11	V11
Travels
Xtravels	mm	800	1100	1100
Y travels	mm	550	600	600(650 Option)
Z travels	mm	550	600	700(750 Option)
Worktable
Worktable size	mm	1000*550	1300*600	1200*600(650 Option)
Max.weight on worktable	kg	600	900	800
T-slots(No.-W*distance)	mm	5-18*90	5-18*90	5-18*120
Spindle
Distance from spindle end to worktable	mm	120-670	120-720	95-795
Distance from spindle center to column guide surface	mm	590	664	686
Max.Spindle speed	rpm	12000	12000	12000
ATC Auto Tool Magazine
Spindle taper	#	BT-40	BT-40	BT-40
Tools capacity	Bit	24	24	24
Max.tool Weight	kg	8	8	8
Max.tool Length	mm	300	300	300
Max.tool Diam	mm	75/150	75/150	75/150
Basic parameters
Spindle power	kw	11/15	11/15	11/15
X-axis rail specification	mm/min	48000	30000	36000
Yaxis rail specification	mm/min	48000	30000	36000
Z axis rail specification	mm/min	36000	30000	36000
Cuting speed	mm/min	12000	12000	1-12000
Axis motor	kw	3.0/3.0/3.0	3.0/3.0/3.0	3.0/3.0/3.0
Water tank capacity	L	200	300	300
Air consumption	kg/cm²	6	6	6
Power requested	kva	20	20	20
VDI3441 (JISB6338)
Positioning	mm	P0.008(±0.003/300)	P0.01(±0.004/300)	P0.01(±0.004/300)
Repeatability	mm	Ps0.006(±0.002)	Ps0.008(±0.003)	Ps0.008(±0.003)
Machine Weigh	kg	5500	8000	6500
Diametion (L*W*H)	mm	2460*2350*2550	2900*2750*2520	3100*2785*2700 S

Standard proximity and function			Optional proximity and function
1.FANUC 0i-MF Plus controller		12.Heat exchanger	1.Mitsubishi M80 controller
2.BT40 inclined spindle on 12000rpm		13.Rigid tapping	2.BT40 inclined spindle on 15000rpm
3.Arm type ATC of 24 tools		14 . Work light	3.CTS system
4.Oil coolant system			4.Triaxial optical scale device
5.Spindle blushing		15.Warm lamp
6.Automatic lubrication system			5.Disc oil water separator
7.Full cover		16.Manual loosening device	6.Chain type chip conveyor and tank
8.Cutting coolant system		17.Toolbox and tools	7.Safety door system
9.Tank and waterbox		18. Anchor bolts and spacers	8.Automatic tool measurement system
10.(MPG)Handwhel(MPG)			9.Rotary table (fourth axis)
11.Air &cleaning gun		19.Transformer
		20.Mechanical Operation and Maintenance Manual

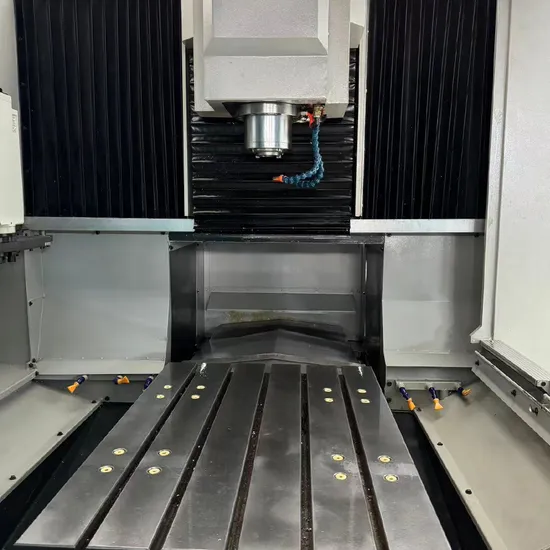

Detailed Photos

Item	Unit	SK-1825	SK-1825H
Travels
X-axis	mm	2500	2500
Y-axis	mm	1800	1800
Z-axis	mm	800	800
Spacing between columns	mm	2000	2000
Distance from spindle nose to table	mm	250-1050	580-1380
Worktable
Table size (L X W)	mm	1620X2500	1620X2500
T-slot (Quantity - size X distance)	mm	9-22X180	9-22X180
Maximum average load of table	kg	4000	5000
Spindle
Spindle revolution	rpm	Belt 8000	Belt 8000
Spindle revolution (optional)	rpm	Direct connection 8000	Direct connection 8000
Spindle revolution (optional)	rpm
Spindle motor power	kw	18/22	18/22
Spindle taper hole		BT50	BT50
Speed
Fast feed velocity (X,Y,Z) axis	m/min	20/20/18	20/20/18
Cutting feed speed (X,Y,Z) axis	mm/min	5~10000	5~10000
Automatic tool changing mechanism ATC
Tool storage capacity	pcs	24(30/40/60/120-OPT)
Maximum tool length	mm	300	300
Maximum tool weight	kg	20	20
Automatic tool change maximum tool diameter (full tool)	mm	125	125
Automatic tool change maximum tool diameter (air)	mm	210	210
Accuracy VDI3441(JISB6338)
Positioning	mm	P0.025(±0.005/300)	P0.025(±0.005/300)
Repeatabity	mm	Ps0.023(±0.004)	Ps0.023(±0.004)
Other
Wind pressure supply	kg/cm²	6.5	6.5
Power supply	kva	50	50
Maximum machine floor area (L X W)	mm
Maximum machine height	mm	4500	4500
Machine weight	T	18	19
The company reserves the right to change the above specications for products or technologies

ASSEMBLY PROCESS
Company Profile
Packaging & Shipping
Certifications
FAQ
Q1: How is the warranty?
A1: Warranty time is 12months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System and OHSAS18001 International Occupational Health and Safety Management System. Most products have passed European and American safety standards certification, including CE, GS, EMS&UL. 90% of the products are exported to more than 60 countries and regions worldwide and have always won a high reputation. Therefore, you can rest assured of our high-quality products and the best service.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
