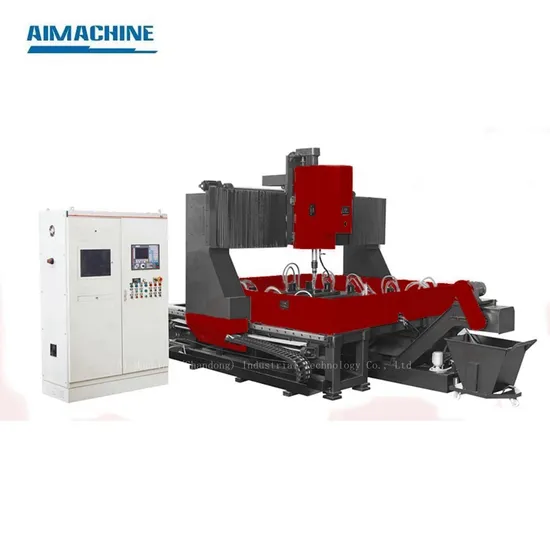

Steel Fabrication Tube Sheet Steel CNC Plate Flange Drilling Hole Machine with Gantry

Product Description

Product Description
Apply scope:
For steel structure, tower, bridge, mechanical processing and other industries of the connecting plate, baseboard drilling processing.
1. The bed is made of high quality gray cast iron with stable performance and no deformation.
2. Spindle hydraulic feed, high efficiency and very durable.
3. Adopt hydraulic clamping system, small workpiece can be clamped at four corners of worktable, shortening production preparation period and improving production efficiency.
4. CNC system: In the Windows interface or in the AUTOCAD environment, the steel plate is programmed directly, the programming is convenient. It can be finished to make program outside the computer, then directly copy or transmit by internet into computer to save as the program.
Product Parameters

Model	PCD2012	PCD 2016	PCD 2016/2	PCD 2020	PCD2020/2	PCD3016	PCD3016/2
Max plate size (L×W)	2000×1200	2000×1600	2000×1600	2000×2000	2000×2000	3000×1600	3000×1600
Plate Thickness	15~100	15~100	15~100	15~100	15~100	15~100	15~100
Clamp type	Hydraulic clamp
Drill head quantity	1	1	2	1	2	1	2
Drill diameter	Φ12-Φ50mm	Φ12-Φ50mm	Φ12-Φ50mm	Φ12-Φ50mm	Φ12-Φ50mm	Φ12-Φ50mm	Φ12-Φ50mm
Spindle speed	120~560r/min
Drive mode of Power head	Hydraulic driven

Company Profile
AI-Machine(Shandong) Industry Technology Co.,Ltd is a high-tech company known for its advanced technology and perfect after-sales service. The company is mainly engaged in CNC Machines for angle steel tower, CNC Machines for steel structure ,CNC metal coil processing complete sets of equipment, like circle blanking line, cross-shear line, slitting line for hot-rolled and cold-rolled series plate. Design and manufacture of other non-standard equipment; design and manufacture of hydraulic and electric control systems; design and manufacture of special hydraulic machinery.
Other products
FAQ
1. The delivery time?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. After-sale service?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Installation and Training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Model choose?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
