Explosive New Products Rebar Steel Bar Bending Machine with Gw40d CNC

Product Description

Product Description
Product Parameters

Type	GW40D CNC	GW40D	GW46	GW46 CNC
A3 Round bar	Φ6-Φ40mm	Φ6-Φ40mm	Φ6-Φ40mm	Φ6-Φ40mm
II class Reinforced bar	Φ6-Φ32mm	Φ6-Φ32mm	Φ6-Φ32mm	Φ6-Φ40mm
Motor power	4kw	4kw	4kw	4kw
Motor speed	1440 r./ min	1440 r./ min	1440 r./ min	1440 r./ min
Disc diameter	340mm	340mm	340mm	340mm
Bending speed	5-10r/min	5-10r/min	5-10r/min	5-10r/min
Dimension	950 *980 *820 mm	950 *980 *820 mm	1120 *1020 *970 mm	1120 *1020 *970 mm
Weight	270KG	270KG	340KG	340KG
Input voltage	Three phase 380VAC 415VAC or customized
Color	Red, yellow,gray,blue or customized

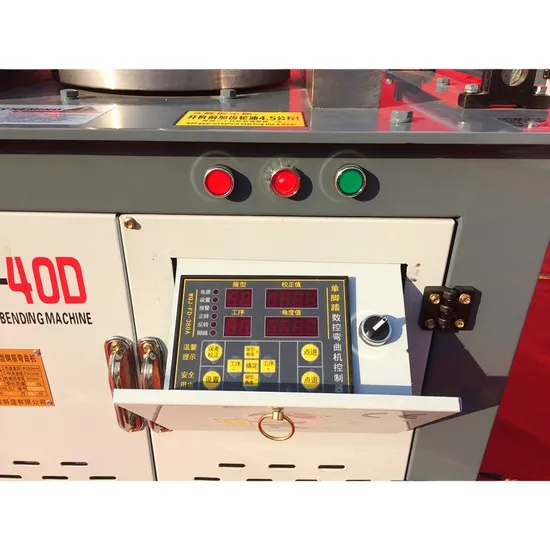

Detailed Photos

Our Advantages 1.The full-steel solid operating console makes it a long service life, and the movable steel strip and disk make the machine can change angle easily.
2.The speed-changeable pulley make the speed regulation easier, quicker and more convenient.
3.Gear-driven motor make the machine more powerful and efficient.
4.CNC system can guarantee the accuracy of angle regulation and working efficiency.
5.There button switch and foot switch are available, which make the operation safer and more convenient.
Company Profile

Changge Kowloon Machinery Manufacturing is a collection of scientific research, development, manufacturing, sales and service as one of professional construction machinery manufacturers. Established in 2013, factory area 28000 square meters, with 57 employees, has CE and ISO 9001 Certifications. We always produce our products to higher standards than the industry and are known for the quality of our products. The main products are: Rebar cutting machine, Rebar bending machine, Plate compactor, Tamping rammer, Polishing machine, Road roller, Forklift and other Mechanical equipment. Products are exported to Southeast Asia, Central Asia, Eastern Europe, Africa, South America, Russia and other dozens of countries. Until now, nearly 120, 000 sets of our machines are servicing the overseas construction sites now. We not only provide lightweight construction machinery, but also help you solve construction problems, provide you and your company with great service, unbeatable price and real value! We invite you to become a member of our growing family of customers, warmly welcome your coming! Certifications FAQ Q: What's the MOQ?
A:1 Sets.
Q: What about the shipment?
A:Shipped in 7days after payment.
Q: What's the usually delivery terms?
A:FOB,CNF,CIF,EXW will be ok.
Q: What's your packing?
A: lron frame and Plywood cases or carton.
Q: What's the pavment terms?
A: We accept Cash,T/T,L/C.
Q: What's your delivery port?
A: Usually Qingdao Port, Tianjin, Shanghai or other port of China.
Q: Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your requirements.
Q: Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
Q: Does machine have certificates?
A: We have got the CE certification. And we are the profetional construction manufacturer, we can guarantee the quality.
