High Pressure Double Acting Air Fuel Gas Transfer Pump 500- 800 Bar Output High Pressure Double Acting Gas Booster Pump for Accumulator Refilling

Product Description

Product Description
ODMT Air Driven Gas Boosters provide for pressures up to 80Mpa (11,600 psi). Used for virtually all known gases, these boosters are ideal for increasing gas pressure, transferring high pressure gas, charging cylinders and scavenging.

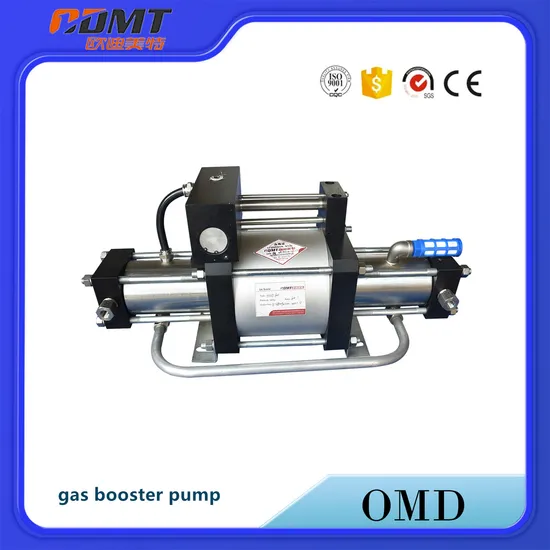

The OMD series gas booster pump is a single-stage booster pump. In order to achieve the required pressure, the input air pressure at the gas input port requires a certain degree of pre-increase. The pre-increase pressure reaches
The maximum pressure varies. The maximum pressure can be increased to 80Mpa. The commutation method of this series of pumps is exactly the same as that of the OMA series. The difference is that this series of pumps
It is a double-head pump based on the OMA series. The entire pump is made of aluminum alloy and stainless steel. The driving piston diameter of this series of pumps is 160mm.
The dynamic air pressure is ≤8bar, and the pump heads at both ends are equipped with exhaust cooling. When leaving the factory, the two inlets and two outlets can be connected with pipelines according to user requirements.
Product Parameters
OMD-Series
This series of pump has double stage. It can amplify extremely low pressure into very high pressure. The drive gas pressure≤8bar. The rage of inlet gas pressure is 0.5-10bar. The maximum pressure can be up to 80Mpa. The pump is made of aluminum alloy and stainless steel.
The diameter of its drive piston is 160mm. Both pump heads can cool the exhaust gas.

Type	Pressure ratio	Min. Gas Inlet Pressure PA(bar)	Max. Gas Inlet Pressure PA(bar)	Max. Allowed Outlet Pressure PB(bar)	Outlet Pressure Calculate Formula PB	Gas Inlet	Gas Outlet	Max. Flow Ln/min @PL=6bar
OMD10	10:1	5 bar	80 bar	80 bar	10PL+PA	ZG1/4	ZG1/4	372@PA=6
OMD25	25:1	10bar	200bar	200bar	25PL+PA	ZG1/4	ZG1/4	154@PA=20
OMD40	40:1	15bar	320bar	320bar	40PL+PA	ZG1/4	ZG1/4	92@PA=20
OMD60	60:1	25bar	480bar	480bar	60PL+PA	ZG1/4	ZG1/4	115@PA=40
OMD100	100:1	35bar	800bar	800bar	100PL+PA	ZG1/4	ZG1/4	74@PA=40

PL=drive pressure PA=input gas pressure PB=output gas pressure
Key features include:
Compressed Air driven - no electricity required (connect to normal air compressor) In order to extend the lifetime of the pump, the driving air pressure should not be higher than 8 bar No airline lubricator required Hydrocarbon free - separation between air and gas sections Pressures to 80Mpa (11,600 psi) Wide range of models with different ratios Built-in-cooling on most models Easy to install, operate and maintain Best price / performance ratio No heat, flame or spark risk and explosion proof Automatic pressure holding, whatever the cause of the pressure drop, the Suncenter pump will automatically start, keep the loop pressure constant Applicable gas: Argon/Helium/Hydrogen/Oxygen/NO2/CH4/LNG/LPG/CNG/FM200 etc. OMD series gas booster pumps(Double acting ): DMD series pumps are double acting, with single air driven heads type. OMD pumps are available with high quality seals, which provide significantly better service life Double pump heads with exhaust cooling devices. All components in contact with the gas are made of stainless steel. Pipes mounting way are available as customized.
How to Select ODMT Air Driven Gas Boosters/Systems? In order to choose suitable booster pump or systems for you, please kindly reply us the following questions: 1.What is your present gas pressure?( )bar 2.What is your gas?oxygen gas,nitrogen gas or other gases? 3.What outlet gas pressure do you want?( )bar 4.What driven air pressure (of your air compressor) can you offer?( )bar, because our booster is completely air operated and no need any electricity 5.What outlet gas flow rate do you need?( )L/min
Application
Pressure test with gas Gas transfer and filling (Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.) Charging of gas cylinder and accumulator with nitrogen Supply for isolating gas systems Gas assisted injection molding Transfer of oxygen cylinders Charging of breathing air bottles Leak test Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, BOPs, gas bottles and air craft components Safety valve adjusting Packaging & Shipping
Company Profile

Certifications
FAQ
Q1. Where is your factory located ? How can I visit there?
Our factory is located in Jinan city, Shang dong Province, China. We can go to Jinan airport and wait for your arrival.
Q2 : Do you have stock for all items? A:In general, we have some stock, while if you need a bulk order, we still need time to produce it. Of course, we will inform all details you before your payment.
Q3. How long can be finished the goods ? A : Sample order : within one week ; Large order : 15-25 days ; According to your purchase quantity.
Q4. At which port do you usually ship the good? We usually ship goods via Qingdao port of China.
Q5 : What is payment terms ? A: Sample order : 100% full payment before start to production; Large order : 30% deposit first, 70% pay after see the BL copy ;
Q6: Can give free sample ? A : Free : if small spare parts and the cost not too much is ok ; Not Free : the cost expensive and all the machine can not be free ;
