Titanium Clad Copper /Oxygen Free Copper Clad Titanium Busbar for Galvanizing Lines

Product Description

Gr2 Titanium clad copper bus bars anode and other non-ferrous metals clad composite materials electrodes

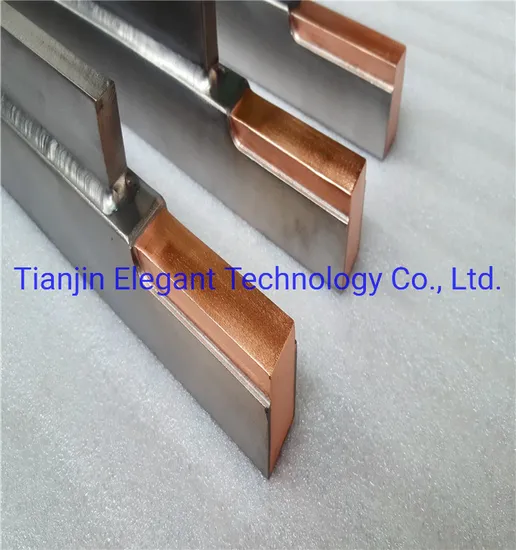

Titanium clad copper bus bars anode is a copper bar cladding with a certain thickness of titanium level, mainly used as a stand in plating, electrolysis, hydrometallurgy processes, because it has not only the original conductive property of the copper bar, but also protecting the copper bar from corroded by titanium level, therefore avoid the traditional copper bus bars shortcomings: danger and difficulty changing the anode metals, copper bar corrosion, heat generation caused by the electrical contact resistance in electrolysis and plating defects due to corroded and fallen copper compound, can greatly lower pollution of electrolyte. Now, the submerged Ti clad copper bus bar is the best choice for many industries including print circuit makers, steel (copper, gold) refining manufacturers.
Normally, we provide the first rate clad non-ferrous metal composites, mainly titanium clad copper and also including zirconium clad copper, 316L steel clad copper, titanium clad 316L steel plates, bars, tubes, composite wire, and multi-layer clad composites, etc.
But, if you request that the material has this function above, then you must be sure that there are much stronger combination strength and much higher pasting rate between the copper bars and the titanium level, this can't be met by traditional mechanical combination methods. So in order to overcome it, our company R&D team summarizes three advanced processing technologies through several ten years of experiment: explosive welding, rolling cladding, and explosions-rolling cladding. Elegant group has successfully produced four individual layers titanium clad copper bars, at minimum, there is a core and an outer layer. Its sheared strength ≥ 130 Mpa, compact rate ≥ 98%, we can also supply the various specification of round, square, flat bars, the length of the bars can reach above 10 meters and can weld different shape and material together in according to the customer request. We could also make nickel clad copper bars, stainless steel clad copper bars, and zirconium clad copper bars series products through the same process technology.
Unsurpassed advantage performance of Titanium Clad Copper bus bar anode:
(1) Good Shear and tensile strength: The shear and tensile strength is tested and guaranteed in accordance with GB, ASTM, and JIS.
(2) Perfect Elongation and Ductility: Elongation and Ductility of cladding metal is guaranteed in face bend (=cladding metal in tension), and the ductility of base metal is guaranteed in reverse bend (=cladding metal in compression).
(3) Good Hardness: The bonded interface is slightly hardened after explosion bonding. The interface can be softened by heat treatment to an original level. There exists no difficulty in bending and drawing works
(4) Excellent electrical conductivity: explosions-rolling process of the production make titanium and copper composite close completely with no delamination and therefore has good electrical conductivity, the composite strength of 135Mpa, and micro-resistance for 7.77 × 10-6Ω
(5) Fantastic Corrosion Resistance: Explosion bonding, a clad processing, guarantees excellent corrosion resistance of clad materials.
(6) Great weldability for connecting, capping and joining
(7) High reliability; High conductivity; Biocompatibility; Weld ability; Cost effective.
Strict Products Inspections to ensue us to provide 100% Titanium clad copper bars and other non-ferrous metals clad composite materials.
Our products 100% Ultrasound inspect and visual Test.Microstructure inspection, physical inspection, chemical composition analysis and other special test and inspection are carried out in independent labs.
Elegant group titanium and titanium alloy clad composites is the leader in the titanium industry. If you know the type clad composites you are interested in, you are kind to select it. When you are not sure which one you need, or would like to know more information, feel free to call us directly to discuss your particular requirement and we can help you decide which one is the best one.


Mobile: 0086-18892227363

Titanium and Titanium alloy clad metal material Composites
Description	Trademark	specification(mm)	Standard	Application
Titanium clad 316L Steel	TA1,TA2, TA,TA10/16 Mng, 0R,20g,Q235	1-10/5-120X≤ 2000X≤8000	GB8547-87 ASTM B 898-99 JISG3601-92	Petrochemical, chemical, vacuum salt making, chloro-alkali, food, fertilizer, bicycle, wet metallurgy, electroplating, PCB
316L steel clad copper	304, 321, 316L, 2205, etc T1,T2,T3,T4 etc.	1-10/5-120X≤ 2000X≤8000	GB8547-87 ASTM B 898-99 JISG3601-92	Petrochemical, chemical, vacuum salt making, chloro-alkali, food, fertilizer, bicycle, wet metallurgy, electroplating
Titanium clad aluminium	TA1,TA2,TA9, TA10/L,LY,Lf etc.	1-10/5-50X≤ 2000X≤8000	GB8547-87 ASTM B 898-99 JISG3601-92	aerospace, cook ware, chemical industry, ship, special brazing filler
Titanium clad Copper	TA1,TA2, TA9,TA10/T1, T2,T3,T4 etc.	1-10/5-50X≤ 2000X≤8000	GB8547-87 ASTM B 898-99 JISG3601-92	Power plant, electrolysis, cook ware, wet metallurgy, pcb
Ti/Ni clad material	TA1,TA2,TA9, TA10/N2, N4,N6 etc.	1-10/5-50X≤2000X≤8000	GB8547-87 Or ASTM B 898-99 or JISG3601-92	Metallurgy
Technique	The advanced Explosion or explosion/rolling technique
Shape	Round, square, rectangle, drum and various shapes the customers required.
