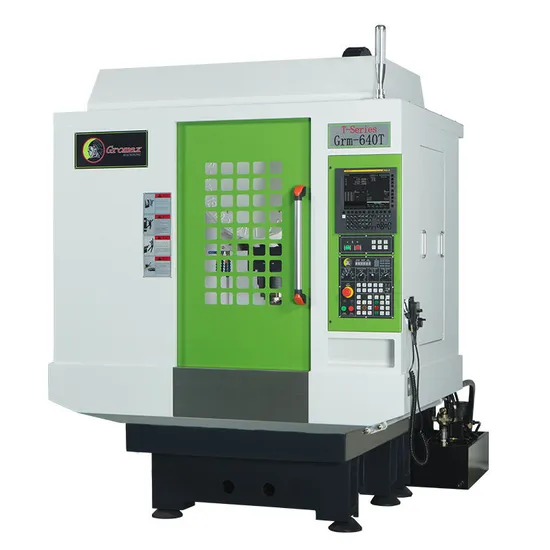

Grm-640t Vmc 640t High Speed Machining Center

Product Description

Product Description
Specification

Item			Unit	GRM-640T
Travel	X*Y*Z-axis	mm	600*400*350
		Distance from spindle end face to worktable	mm	170-520
		Distance from spindle end face to worktable	mm	420
Pallet	Working desk size	mm	700*400
		Pallet load-bearing	kg	250
		T-Slot width	mm	14*100*3
		Pallet QTY	set	1
Spindle	Spindle taper bore	mm	BT30
		Maximum spindle speed	r/min	20000
		Spindle power ( Optional )	KW	3.7(5.5)
Tool magazine	Tool magazine capacity	set	21T
		Max. tool diameter	mm	65
		Max. tool length	mm	160
		Max. tool weight	kg	2
Feed	X-axis rapid displacement	m/min	48
		Y-axis rapid displacement	m/min	48
		Z-axis rapid displacement	m/min	48
		Cutting feed rate	mm/min	15000
Three axis accuracy	Positioning accuracy	mm	P0.01
		Repeat positioning accuracy	mm	Ps0.008
Others	Power supply capacity	KVA	15
		Air demand	kg/c	5.5
		Cutting fluid capacity	Liter	250
		Machine weight (combined)	t	3
		Dimension (L×W×H)	mm	1900*2200*2600

Our Advantages
NINGBO GROMAX CNC EQUIPMENT CO.,LTD We have a full set of professional testing equipment to ensure the high quality and precision of our machines .
Packing & Delivery
Customized sturdy wooden box to protect machine well .
Company Profile

00:00
00:00
NINGBO GROMAX CNC EQUIPMENT CO.,LTD Gromax was estalished in Taiwan since 1985 , Specializing in the production of CNC machining centers . In 2004, we estabilished a manufacturing center in Donguan , specializing in the production of vertical machining centers . In 2014 , we have established a comprehensive production base in Ma'anshan, Anhui Province, specializing in the production of vertical and horizontal machining centers. In 2015, we established complete machine assembly factory in Kunshan , Jiangsu province . In 2015, we established complete machine assembly factory in Xuancheng, Chongqing , Quanzhou . In 2019 , we have established a casting production base and a gantry machining center production base in Ji'an, Jiangxi. In 2020 , we established a vertical machining center production base in Changshu, Jiangsu Province . We devote ourselves to research and development, keep up with market demand, pay attention to every link in the processing process, strictly require quality, and strive to cultivate high-end products in the industry. After nearly 40 years of ups and downs, Gromax CNC has adopted a global development strategy and put quality first. , innovative and developed, with a dedicated and professional R&D team, advanced production equipment that is in sync with the world, complete testing and measurement facilities, exquisite processing skills, and rigorous quality management systems, to create high-end quality airport equipment for global users. To do your job well, you must first sharpen your tools After years of innovation and development, Gromax CNC has become a professional manufacturing enterprise integrating development and production of modern machine tool equipment. Gromax now possesses a number of core vertical machining and milling machine manufacturing technologies, equipped with high-end production and high-rigidity designs and complete after-sales services. We have always launched the drilling machining center, vertical machining center, horizontal CNC lathe, moving column horizontal open machine, gantry machining center, overhead crane type gantry machining center, automatic CNC double-head milling machine, marble CNC dragon pattern based on professional international manufacturing industry. Nine series of products, including grinding machines and five-axis machining centers, are sold well all over the country and in many countries around the world. Motivate every employee to use professional knowledge as support to improve the product production line and adjust the structure of the Gromax machine tool industry. The manufacturing team is based on skilled skills and strives for excellence in details. The sales team has insight into market needs and delivers accurately. Get market feedback in real time to promote innovation and improvement of product series. With the ebb and flow, Gromax CNC has achieved world-renowned achievements along with the take-off of China's economic equipment manufacturing industry. Looking back on the past, Gromax CNC has forged ahead and won high recognition from the market with its professional technology, super cost-effectiveness and perfect after-sales service. Facing the future, Gromax CNC is still full of confidence, pursues its original intention, challenges higher, and breaks new ground in more fields.
Gromax's dedication has received enthusiastic response from customers. We will strive for excellence true to perfection , the entrepreneurial spirit of excellence, do our part ,while grateful for the trust of customers, Gromax Company promises to never let down its customers.
