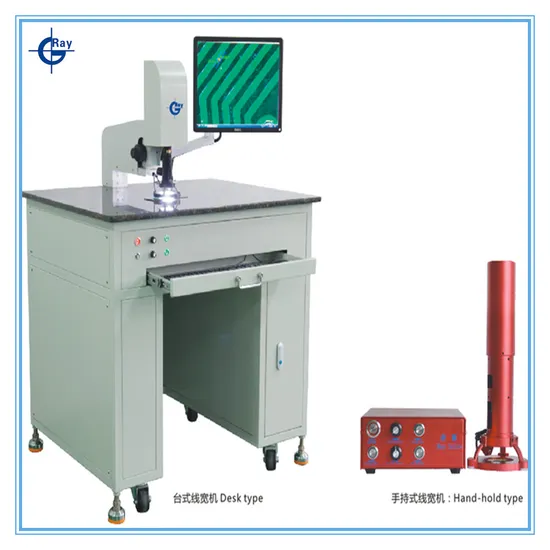

PCB Line Width Tester (RAY-LW01)

Product Description

Technical Parameter:

Item	parameter
Model	RAY-LW-02
Resolution	0.70~5.20μm/pixel
Electronic magnification	70x~400x
Optical magnification	0.7×~4.0× continus adjustable
Light source	LED circle light
	LED red positioning
CCD	high sense CCD
Max measurable board width	780mm
Sight arrange	0.53mm×0.4mm~3.4mm×2.5mm
Appearance dimension(without computer)	(L×W×H)
Weight(exclude computer)	145kg
Power supply	220V~±10%)/50Hz
Operation temperature	0ºC~40ºC

Usage
This machine is mainly used to measure the widths of inner and outer range of semi PCBs after etching (before solder masking). In addition, the distance between two lines, distance between holes and edge and diameters of different holes and arcs can also be measured.
Expanding usage:
it can also be used to measure widths of IC wafer, thickness of films, LCD boards, etc.
