OEM Custom High Quality White/Sand Gray Gra System Window

Product Description

Product Description

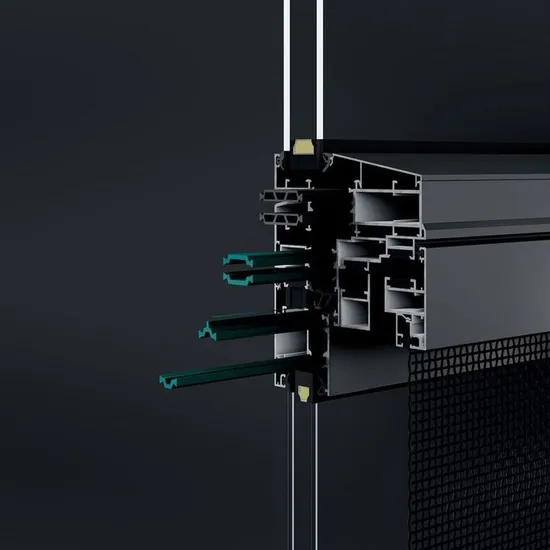

GRA SYSTEM WINDOW
Product profile: high-strength silicon-magnesium aluminum alloy
Glass configuration: standard 5+27A+5 hollow tempered glass
Hardware accessories: Higoal brand hardware accessories
Gauze configuration: standard black steel gauze
Product selling points: corner injection process, PA66 multi-cavity insulation strip, internal and external flush design
Opening method: outward opening, inward opening, outward opening bottom-hung window, inward opening inner tilt window
Glaze process
Adopt German corner injection process design
Better waterproof performance and safety performance
Profile adopts 6063-T5 aluminum alloy with a wall thickness of 2.0mm
High hardness, good toughness, environmental protection, corrosion resistance, and higher safety factor
Built-in square pressure line
Simple and atmospheric, firm structure
Black warm edge strip-body bendingWeather-resistant and beautiful, good overall sealing, improved thermal insulation performance
Standard Xinyi glass 3C certification 5mm+27A+5mm
Improve thermal insulation and sound insulation performance, and can effectively block sound and heat transfer.
PA66 nylon insulation strip
Solid structure, better insulation, longer life, anti-aging
A hollow aluminum strip filled with a molecular sieve
Moisture-proof, explosion-proof, anti-fogging, effectively preventing condensation and frost on glass
304 stainless steel diamond mesh
Breathable and anti-insect, durable
Gauze fan top and bottom axis, more convenient to disassemble and wash
Frame fan splicing adopts the pin injection process
Improve sealing performance and waterproof performance
EPDM rubber strip
Excellent sealing performance, durable, anti-aging, anti-corrosion, greatly enhance water tightness and air tightness
Flush design inside and outside
Beautiful and stylish, unified overall visual effect
Color configuration:
White, sand gray, starry sky black, fluorine porcelain grayProduct Parameters

GRA SYSTEM WINDOW
Product Name	System Window
Keywords	GRA System Window
Technology	Glue Injection Process
Profile	6063-T5 Aluminum Alloy
Glass	Standard Xinyi Glass 3C Certification
Glass Size	5mm+27A+5mm
Insulation Strips	PA66 Nylon Insulation Strip
Screen	304 Stainless Steel Diamond Mesh
Color	White / Sand Gray / Starry Black / Fluorine Gray
Frame Fan Design	Flush Inside And Outside
Function-1	Durable / Anti-Aging
Function-2	Anti-Corrosion / Sound Insulation
Function-3	Enhanced Water Tightness / Air Tightness
MOQ	LOW MOQ
Sample	Accept
OEM & ODM Custom	Accept
LOGO Custom	Accept
The Parameters In The Above Table Are For Reference Only. All Are Subject To The Actual Product Received.

Detailed Photos
FEATURES-1
Profile wall thickness (2.0mm), system window structure design, improve the product's watertightness, airtightness, and safety performance.FEATURES-2
The frame and sash are designed to be flush inside and outside, simple and beautiful, and the overall closure is tighter.FEATURES-3
The sealing strip is not exposed, and the sealing and pressure resistance are excellent. The sky and earth axis of the gauze fan are easy to disassemble and wash.FEATURES-4
The EPDM strip is used, which has outstanding sealing performance, durability, anti-aging, and anti-corrosion, greatly improving the sound insulation performance while enhancing watertightness and airtightness.FEATURES-5
Equipped with 5mm+27A+5mm ultra-thick hollow glass, it improves thermal insulation and sound insulation performance, and can effectively block sound and heat transfer.FAQ
Q: Are you a factory or trader?
A: We are a professional window and door production sales factory.
Q: What products can be made?
A: Its main products include aluminum windows, aluminum doors, PVC windows, PVC doors, curtain walls, sunrooms, etc.
Q: How much is MOQ?
A: All of our customized products have no MOQ restrictions. If you like, you can contact us directly.
Q: How long does it take to ship from order to shipment?
A: Generally, it takes 15 days to produce. The sooner the order is placed, the sooner the production will be arranged.
Q: What are the payment methods?
A: T/T, PayPal, Western Union, and other remittance methods.
