IC card smart water meter Operation manual Provides: technical parameters, operation instructions, product function descriptions, installation dimensions of large-caliber IC card smart water meters, installation requirements for large-caliber IC card smart water meters.

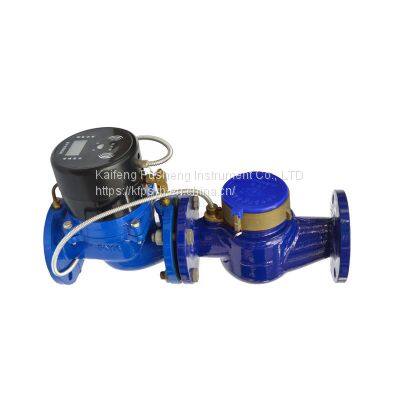

Large-caliber IC card intelligent water meter Large-caliber meter valve integrated intelligent charging water meter (φ40~φ350) is a new high-tech product successfully developed by our company's R&D personnel after the large-scale promotion of household intelligent charging water meter, in response to the requirements of the majority of water company users. The large-caliber IC card intelligent water meter is composed of self-contained valve sending water meter, intelligent controller and reader. In addition to measuring the water consumption of group users, it can also use IC card to purchase water, and automatically alarm and shut off the valve to stop supply according to the purchase amount and the actual usage of users. Products meet GB/778-1996, CJ/T133-2007 standards.

nominal CAL	overload traffic	The commonly used traffic	boundary traffic	The minimum traffic
50	30	25	2.0	0.500
65	48	40	3.2	0.800
80	75	63	5.0	1.25
100	120	100	8.0	2.0
150	300	250	20.0	5.0
200	500	400	32.0	8.0
250		630	100.8	25.2
300		1000	160	40

1. When choosing a large-caliber IC card intelligent water meter, the flow rate of the pipeline frequently used should be close to or less than that of the water meter, and the caliber of the water meter can not be determined simply by the caliber of the pipeline.
2, the new pipeline should first remove the gravel, sediment and other debris in the pipeline before the installation of large caliber IC card intelligent water meter, in order to prevent large caliber IC card intelligent water meter damage or failure. You are advised to install a filter.
3, large caliber IC card intelligent water meter dial upward horizontal installation, the arrow direction of the case should be consistent with the direction of water flow in the pipeline, water meter upstream should be installed flow straightening device or rectifier straight pipe section, rectifier straight pipe section length is greater than 5 times the caliber of the water meter.
4, large caliber IC card intelligent water meter should not bear excessive stress caused by the pipe, when necessary, the water meter should be installed on the base or bracket.
