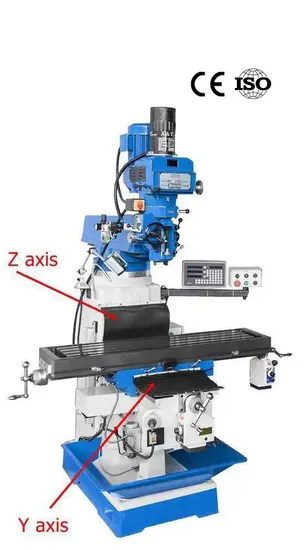

Manual Universal Vertical Turret Milling Machine Hot Sale X6333
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
X6333
Type
Worktable Milling Machine
Structure
Rocker
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
CE
Condition
New
Table Size
330X1370mm(13"X54")
T-Slot No. and Size
3X16
RAM Travel
500mm
Spindle Travel
127mm
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84596990
Product Description
| Turret Milling Machine X6333,X6333A Feature |
| ·Heavy, solid model made of high-grade casting |
| ·All axes with adjustable dovetail slideways |
| ·Mill head can rotated and tilted |
| ·Adjustable gibes on table |
| ·Accurate position, good rigidity, big cutting power |
| ·Automatic spindle sleeve feed |
| Specifications | X6333 | X6333A | |
| Table size | 330x1370mm(13"x54") 330x1500mm(13"x58") | ||
| Table travel | Longitudinal | 820/1000mm | 820/1000mm |
| Cross | 380mm | 380mm | |
| Vertical | 460mm | 460mm | |
| T-slot No. and size | 3x16 | 3x16 | |
| Ram travel | 500mm | 500mm | |
| Distance from spindle nose to table surface | 0-450mm | 0-450mm | |
| Spindle taper | ISO40 | ISO40 | |
| Spindle travel | 127mm | 127mm | |
| Spindle speed | 50HZ | (16 steps) 65-4500rpm | |
| 60HZ | (16 steps) 80-5440rpm | ||
| Optional | Variable 60-3600rpm | ||
| Auto quill feed | 0.04/0.08/0.15mm/rev(0.0015"/0.003"/0.006"/rev) | ||
| Spindle motor | 3.75KW(5HP) | 3.75KW(5HP) | |
| Head swivel right to left | ±90° | ±90° | |
| Head tilting front to back | ±45° | FIX | |
| Net weight | 2200kg | 2500kg | |
| Standard Accessories | Optional Accessories | |
| Draw bar | X/Y/Z axis power feed | |
| Tool box and tools | Air drawbar system | |
| Working lamp | Clamping kit | |
| Electric box | Mill chuck set | |
| Handle oil pump | Coolant system | |
| Chip tray | ||
| Hang up panel | ||
| Automatic lubrication oil pump | ||
| 3 axes with ball screws | ||
| Spindle protection with power off | ||
| Worktable protection with power off | ||
| DRO | ||
| Vice |
Our Services
What we can do for you? 1. Experienced staffs answer all your questions in time. 2. Customized design is available, more details to let you know our machines well. 3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
