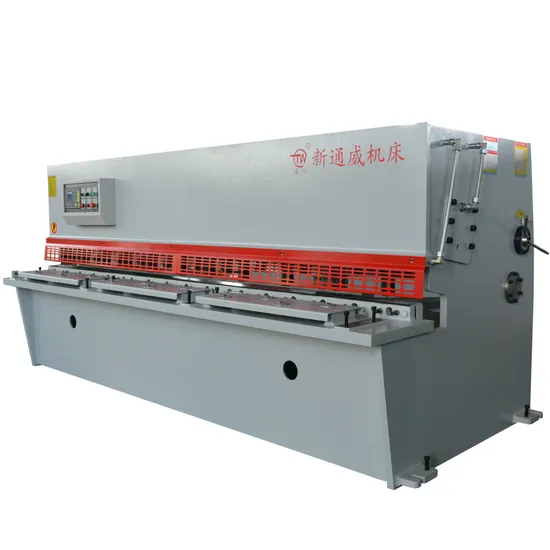

QC12y-6X3200 Hydraulic Swing Beam Shear Steel CNC Shearing Machine with Proper Blade

Product Description

QC12Y-6x3200 Swing Beam Shear Steel CNC Shearing machine with Proper Blade
Detailed Photos QC12Y/K Hydraulic Swing Beam Shearing Machine
1. The pendulum structure with local structural optimization makes the performance more stable.
2. Smaller shearing angle reduces distortion and improves shearing quality
3. The backstop can be fine-adjusted, easy to operate, and has a optional lifting function
4. Equipped with stroke adjustment function to improve processing efficiency
5. Light alignment for easy marking and cutting
6. Practical and efficient, stable and reliable, cost-effective and low failure rate
Product Parameters

Model	Shearing Thickness(mm)	Shearing Width(mm)	No. of Strokes	Backgauge Range(mm)	Shearing Angle	Main Power
QC12Y/K-4X2500	4	2500	18	20-600	1'30'	4
QC12Y/K-4X2500 High Speed	4	2500	34	20-600	1'30'	5.5
QC12Y/K-4X3200	4	3200	18	20-600	1'30'	5.5
QC12Y/K-4X4000	4	4000	12	20-600	1'30'	5.5
QC12Y/K-4X5000	4	5000	10	20-600	1'30'	7.5
QC12Y/K-4X6000	4	6000	7	20-600	1'30'	7.5
QC12Y/K-6X2500	6	2500	18	20-600	1'30'	7.5
QC12Y/K-6X3200	6	3200	14	20-600	1'30'	7.5
QC12Y/K-6X4000	6	4000	12	20-600	1'30'	7.5
QC12Y/K-8X2500	8	2500	14	20-600	1'30'	11
QC12Y/K-8X3200	8	3200	10	20-600	1'30'	11
QC12Y/K-8X4000	8	4000	8	20-600	1'30'	11
QC12Y/K-10X2500	10	2500	10	20-600	1'30'	11
QC12Y/K-10X3200	10	3200	10	20-600	1'30'	11
QC12Y/K-10X4000	10	4000	8	20-600	1'30'	11
QC12Y/K-12X2500	12	2500	9	20-600	1'30'	15
QC12Y/K-12X3200	12	3200	8	20-600	1'30'	15
QC12Y/K-12X4000	12	4000	8	20-600	1'30'	15
