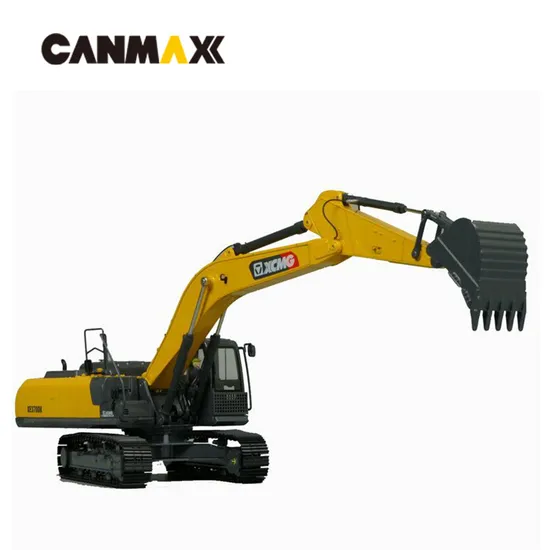

Hot Sale Xe370dk 37 Ton Large Hydraulic Telescopic Crawler Excavator for Sale

Product Description

Product Description
Earthmoving Machinery china 37 ton crawler excavator XE370DK for sale

I. More energy efficient
1. The low-speed and high-torque engine can provide excellent power output, and has good power curve and fuel consumption curve. It has the characteristics of strong power and fuel conservation and is more suitable for the actual working conditions of the excavator.
2. Apply the latest generation of controllers to optimize the power matching between the hydraulic pump and the engine, make full use of the engine power, reduce the waste of engine output power, and further reduce the fuel consumption of the whole machine.

II. More efficient return
1. Along with a new large-diameter multi-way control valve, hydraulic system is efficient and quick; it expands the control range of the valve core, improves the maneuverability to reduce the channel pressure loss by 30%, and thus greatly improve the compound operation efficiency of the whole machine.
2. A new generation of control system can achieve precise and fast matching between the power system and the hydraulic system, and make full use of engine power.

III. More reliable and durable
1. Standard lengthened and reinforced undercarriage system allow for better stability and higher reliability while working in mines.

2. Heavy-duty and reinforced boom, arm and bucket can maintain strong digging forces under tough conditions.

IV. Smarter control
1. A new generation of electronic control system, integrating intelligence, environmental protection and safety, which can achieve comprehensive control for engine speed and hydraulic pump input power, and remote fault monitoring and self-diagnosis functions.
2. Complete the cloud control remote management platform, and improve functions including remote fault diagnosis, remote setting of machine's working parameters, remote monitoring of working status, GPS positioning, tamper alarm and remote lock, and automatic reminder of regular maintenance information.

V. More comfortable and safe

1. The new cab, along with luxurious interiors, panoramic sunroof design, has a wider view and centralized operation buttons, allowing for a full upgrade of the driving experience.
2. High-performance silicone oil shock absorber with internal damping spring will effectively isolate shock waves in specific frequency bands for improved comfort.

VI. Convenient maintenance and service
1. Daily maintenance points are within reach: Whether it is fuel filter, oil filter, pilot filter or radiator, you can directly service it on the ground.
2. Two-in-one fuel pre-filter and oil-water separator with remote hand oil pump makes maintenance much easier.
Detailed Photos



After Sales Service

we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

Product Parameters

Item		Unit	Parameters
Operating weight		Kg	36900
Bucket capacity		m³	1.6-1.9
Engine	Model	/	ISUZU GH-6HK1XKSC-03
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	212/2000
	Maximum torque/speed	N.m	1080/1500
	Displacement	L	7.79
Main performance	Travel speed(H/L)	km/h	5.4/3.2
	Swing speed	r/min	9.7
	Gradeability	°	35
	Ground pressure	kPa	66.9
	Bucket digging force	kN	256
	Arm digging force	kN	219
	Maximum tractive force	kN	285
Hydraulic system	Main pump	/	Two piston pumps
	Rated flow of main pump	L/min	2×296
	Main safety valve pressure	MPa	36
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	26.5
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	660
	Hydraulic tank capacity	L	350
	Engine oil capacity	L	30
Appearance size	A Overall length	mm	11380
	B Overall width	mm	3225
	C Overall height	mm	3520
	D Width of platform	mm	3220
	E Track length	mm	5035
	F Overall width of chassis	mm	3190
	G Track shoe width	mm	600
	H Wheel base of crawler	mm	4040
	I Track gauge	mm	2590
	J Counterweight clearance	mm	1197
	K Min. ground clearance	mm	500
	L Min. tail swing radius	mm	3700
	M Track height	mm	1105
Working scope	A Max. digging height	mm	10135
	B Max. dumping height	mm	6942
	C Max. digging depth	mm	6934
	D Maximum depth cut for 2240mm(8 ft) level bottom	mm	6712
	E Max. vertical wall digging depth	mm	5326
	F Max. digging radius	mm	10480
	G Min. swing radius	mm	4424
Standard	Length of boom	mm	6400
	Length of arm	mm	2670
	Bucket capacity	m³	1.7
	Length of arm	mm	3200
	Bucket capacity	m³	1.6/1.8/1.9

FAQ

Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What spare parts can you supply?
All kinds of spare parts of xcmg,shantui,zoomlion,sinotruck,shacman,liugong,sany,sdlg,lonking,xgma,etc.
