US$120,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
ISO9000, CCC, CE
Transmission Type
Automatic
Min. Turning Diameter
23m
Tank Capacity
3001 - 5000L
Transport Package
Nude Package
Specification
Condition: New
Production Capacity
500unit/Month
Product Description

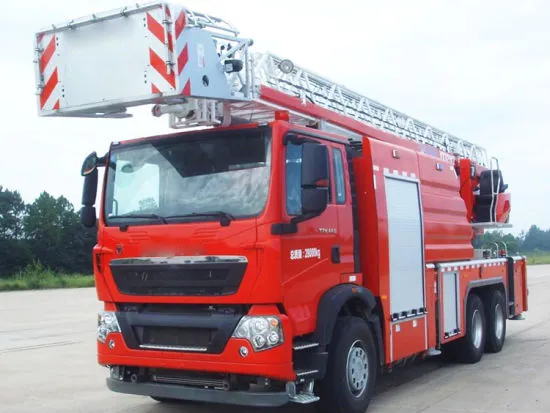

high capacity YT32M1 32m Aerial Ladder platform Fire Trucks for Sale Product Overview
YT32M1 aerial ladder fire truck with features of flexible, strong adaptive capacity of site, quick rescue speed and high technical
security It is widely used for fire-fighting and rescue operation of mid-rise buildings in cities and towns, mines, oil field and
factories, it is the necessary equipment to put out fires in mid-rise buildings, rescue person in distress and property. Advantages and highlights: 1. YT32M1 chassis adopts brand chassis with advanced performance and large loading capacity, with
sufficient margin of power. 2. The firefighting system is equipped with full functions and the pump gun has excellent performance.
The inlet and outlet and control valves are well equipped and easy to operate. 3. Various working condition curves control mode
can efficiently improves rescuing capability of the fire truck and bring the functions of fire truck into full play. 4.
Independent working platform has quick disassembly and reassembly function so as to realize various working conditions. Product Paramenters
Outline dimension (L×W×H) | 11450×2500×3810mm |
Max. total mass | 29000kg |
Max. travel speed | ≥90km/h |
Min. turning diameter | ≤23m |
Approach angle | ≥16° |
Departure angle | ≥12° |
Max. grade ability | ≥25% |
Outrigger span | Longitudinal span | 5400mm |
Lateral span | 5200mm |
Load capacity of working platform | 300kg |
Max. working height | 32m |
Maximum working range | 22m |
Boom elevating range | Telescopic boom -12°~+75° |
Slewing range | 360° full-rotation |
Outrigger unfolding time | ≤25s |
Time for boom raising to rated height and rotating 90° | ≤55s |
Max. slewing speed of turntable | 0.5~1.5r/min |
Fire pump | Rated flow | 50 L/s |
Rated pressure | 1.5 MPa |
Fire monitor | Model | Zhangqiu PLKD48 |
Rated flow | 48 L/s |
Rated pressure | ≤1.0MPa |
Reach | ≥60m(water) |
≥55m(foam) |
