Mini 4-Channel IP ADAS DMS BSD GNSS Tracking 4G LTE GSM 720p AI AHD CCTV Kit Mobile DVR Recorder with GPS and Camera System for Vehicles, Cars, Buses, Trucks

Product Description

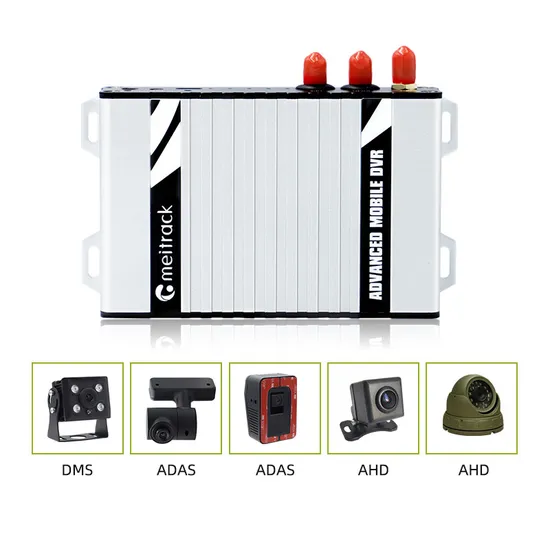

Meitrack Mini AI Mobile DVR MD500S
Product Overview
Specifications

Dimension	120 mm x 70 mm x 25 mm
Weight	300g
Power input	DC: 11-36V. Rated input: 12 V/2 A
Power consumption	Static working mode: 65 mA Normal working mode: 600 mA (Maximum: 1100 mA) Sleep mode: 15 mA
Operating temperature	-20°C to 70°C
Sensor	Built-in 3-axis accelerometer
Storage medium	Up to 256 GB (a class 10 or above micro SD card)
Operating system	Android
Audio interface	3.5 mm audio interface, connected to the speaker or microphone.
Video input	Support 1-channel DMS, 1-channel ADAS, and 2-channel 720p cameras Voltage output: 5 V/0.5 A
Resolution	Storage stream: D1 (704*576), WD1 (960*576), and 720p (1280*720) Live stream: CIF (352*288) and D1 (704*576)
Video compression	H.264 (Support RTMP and AVMSG video streams)
Audio input	4-channel camera Mic input 1-channel 3.5 mm headphone jack input
Audio output	1-channel 3.5 mm headphone jack output
Audio compression	ACC
Video search and playback	Based on the channel, recording type, bit rate type, or time
Recording method	General recording/alert video
WiFi	Internal WiFi module. Support WiFi 802.11a/802.11b/802.11g/802.11n/802.11ac. Frequency: 2.4 GHz or 5 GHz. Support AP/STA mode.
BLE	Support BT2.1 + EDR/3.0/4.1 LE/4.2BLE
GNSS	GPS/BeiDou/GLONASS
3G/4G	MD500-E: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B8 GSM: 850/900/1800/1900MHz MD500S-A: LTE FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71 LTE TDD: B41 , WCDMA: B2/B4/B5 MD500S-J: LTE FDD: B1/B3/B5/B8/B11/B18/B19/B21/B26/B28 LTE TDD: B41 WCDMA: B1/B6/B8/B19 MD500S-W: Only the GNSS, WiFi and Bluetooth functions are supported, and LTE is not supported.

Accessories

ACCESSORIES	MD500S MDVR
	I/O cable
	A57 speaker
	A58 microphone
	Audio cable
	GPS antenna
	4G antenna
	WiFi antenna
	CD download card
OPTIONAL ACCESSORIES	Camera of the ADAS
	Camera of the DMS
	AHD 720P camera
	A61 temperature sensor box
	A52 digital temperature sensor
	A53 fuel level sensor
	USB cable
	Relay
	iButton reader
	BLE ultrasonic fuel level sensor

Certificates: CEMeitrack MS03 Advanced GPS Tracking Software
MMS03 is a professional centralized software that is tailor-designed to support businesses and sustainable platforms, ideal for
developers. The MS03 spotlights such features as GPS Tracking, Video Surveillance, and Alarm Systems amongst others.
Contact us to get a free demo!
Case StudyCity Buses
MD522S | Mexico
The Mexican government introduced Meitrack's MDVR bus management solution to guarantee the safety of Mexican residents, ensure a safe bus travel, and prevent illegal activities inside buses. In this project, Meitrack MD522S, camera, LCD display, SOS button, A91 passenger flow sensor and MS03 tracking platform work together to provide a one-stop internal bus monitoring solution.
Armored Vehicles
MD511H | Malaysia
Inside an armored bank vehicle, a MD511H mobile DVR is connected to four cameras. The video surveillance solution only allows
authorized staff to start the vehicle. If the vehicle door is opened without permission or the vehicle is hijacked, the monitoring
center can quickly and efficiently keep track of what's happening inside the vehicle, remotely cut off the en gine to prevent the
vehicle from moving, and take immediate action to minimize the loss.
