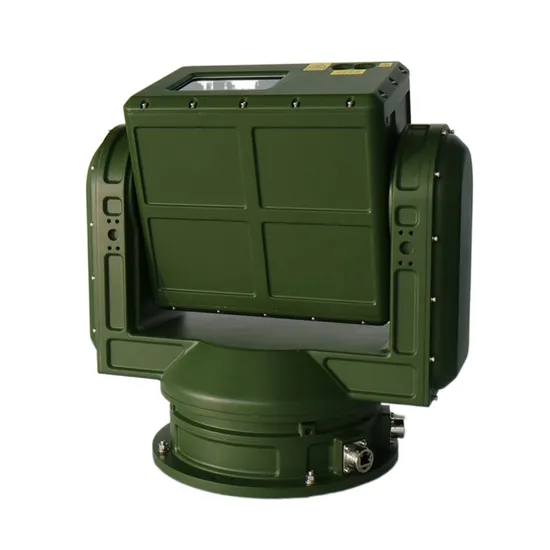

33X Zoom Laser 500m Night Vision Dual-Sensor Thermal Optional PTZ Camera

Product Description

Product Description Features Adopting thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance
640× 512 high resolution infrared detector with NETD≤ 50mK
Day and night 2 megapixels low illuminance color camera, realizing day and night continuous monitoring
Optional auto focusing function, realizing multiple focusing mode and triggering mode
Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency
3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability
High reliability aluminum alloy electro-optical pantilt, reinforcement design, strong ability of anti-wind, anti-salt fog, low and high temperature resistance etc
Technical indicators:

Model	UPTHLV4020HZIR1120-LRF				UPTHLV3020HVIR186
Monitoring distance	HD camera	8000-10000m			5000-8000m
	Thermal camera	Human (1.8m×0.5m)	Vehicle (2.3×2.3)		Human (1.8×0.5)	Vehicle (2.3×2.3)
		17800m	21600m		5000m	14400m
		9200m	15100m		1670m	3600m
		6300m	10500m		840m	1800m
Thermal detector	Detector	Cooled detector			Uncooled microbolometer focal plane array(Vox)
	Pixel	640×512
	Spectral range	3~5μm			8~14μm
	NETD	≤25mK@F4.0,300K			≤50mK@F1.0,300K
	Image process	DDE, pseudo color
Thermal lens	Focal length	55~1100mm			30~180mm
	FOV	0.5°×0.4° ~ 10.0°×8.0°			3.5°×2.8° ~ 20.6°×16.5°
	F value	F1.0~ F1.2			F5.5
	Lens control	E-zoom, e-focus, auto focus
HD Camera	Sensor type	1/1.8'' Progressive Scan CMOS
	Coding format	H.264/H.265
	Video resolution	25fps(2688×1520), support dual stream
	Camera control	AGC, auto balance, auto backlight compensation, 3D digital noise reduce
HD lens	Focal length	16.7~1000mm, 60×			12.5~750mm, 60×
	FOV	0.45°-24.9°			0.6°~ 35°
	Lens control	E-zoom, e-focus, auto focus, auto iris
U-shape Photoelectric pod	Angle	Pan: 0°~ 360°; Tilt: -45°~ +90°		Pan: 0°~ 360°; Tilt: -45°~ +45°
	Speed	Pan: 0.01°~ 80°/s; Tilt: 0.01°~ 60°/s
	Preset	255, support lens zoom, focus presets
	Preset accuracy	±0.05° (±0.01° optional )
	Auto cruise	2 paths, 64 presets each path
Interface	Power supply	Wide range waterproof power adapter, AC90-295V, power consumption ≤180W
	Network interface	1x10Base-T/100Base-TX,RJ45
Environment indicators	Temperature	Working -25ºC~ +55ºC (-40ºC~ +65ºC optional), Storage -40ºC~ +65ºC
	Protection grade	IP66

Exhibition

Effect Demo
Company Profile
China Sheenrun Optics & Electronics Co., Ltd, which was founded in 2004, is a leading night vision equipment and rugged information equipment supplier, as well as a relying construction company of Shandong Province Academician Workstation and Night Vision Surveillance Engineering Technology Research Center. Sheenrun adheres to independent innovation, developed the world's first laser night vision camera and the first uncooled continuous zoom infrared thermal imaging camera with independent intellectual property rights, its synchronous zoom laser night vision technology and continuous zoom thermal imaging technology have reached international advanced standard level, possess the world's largest market share in laser night vision market.
