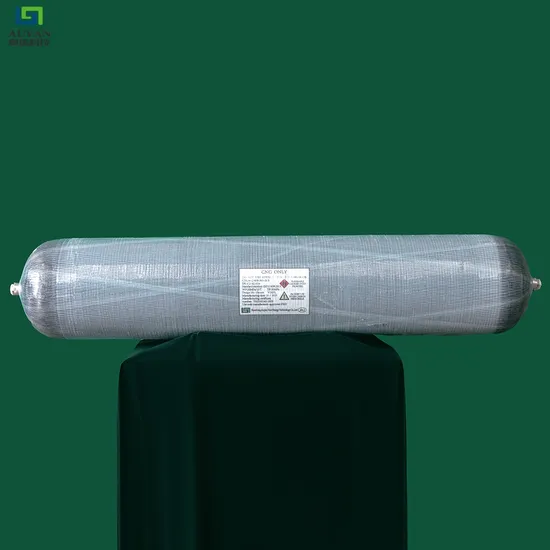

90L Vehicle CNG Tank Type 3 Carbon Fiber Fully Wrapped Cylinder for Compressed Natural Gas

Product Description

Product Description
Vehicle CNG cylinder made in auyan has Long life, excellent anti-fatigue performance, the fatigue life can reach more than 45,000 times.
Auyan CNG vehicle-mounted gas cylinder uses finite element stress analysis technology to optimize the winding internal pressure design, and cooperate with its own patented winding tooling to realize continuous, controllable and variable pressure fiber winding. Core competitiveness: 42% weight reduction, substantial cost reduction and long service life.
Product Parameters

Product Model	Volume(L)	The outer diameter of the inner bladder (mm)	Length (mm)	Pressure (MPa)
CNG4-356-60-20T	60	356	850	20
CNG4-356-150-20T	150	356	1885	20
CNG4-406-80-20T	80	406	885	20
CNG4-406-230-20T	230	406	2175	20
CNG4-460-260-20T	260	460	1860	20
CNG4-430-280-20S	280	430	2200	20
CHG4-346-140-35S/A	140	346	1800	35
CHG4-358-66-70T/B	60	358	940	70
CHG4-370-320-35S/A	320	370	3400	35

Packaging & Shipping Packing with wooden box and shipping method can be negotiated.
Company Profile Established in June 2011, located in Weifang City, Shandong Province, Shandong AUYAN New Energy Technology Co., Ltd. is an innovative enterprise specialized in manufacturing cryogenic equipment and providing technical service.
The main products are industrial welded insulated cylinders, vehicles intelligent LNG cylinders, small-sized LNG supplying systems, and biological liquid nitrogen tanks. AUYAN is one of the leaders in the Chinese new energy industry.
Abides by the core values of "Respect, Unity, Integrity, Innovation" and takes "building the company to be a happiness platform with all staff, to create, share and realize the ideal of life, And contributing to social development and human progress'' for the mission, AUYAN continues breaking through and innovating, insists on sustainable development, determines to become the leader in global new energy revolutionary.
FAQ If you have questions about AUYAN® products, here's where you can find the answers. If you don't find the answer to your question here, please contact us by telephone or email.
Q: Application of insulated welded cylinders (Dewars)?
A: AUYAN supplies dewars to safely contain liquefied gases such as nitrogen, oxygen, argon, and carbon dioxide, which are for industry and commerce use. These gases are stored at extremely low temperatures and in a liquid state.
Q: How many different specifications of insulated welded cylinders (Dewars) does AUYAN have?
A:We produce Insulated Welded Cylinders (Dewars) with 6 different specifications: 175 L (Net Capacity 161 L, 67 kg*), 195 L (Net Capacity 179 L, 75 kg*), 210 L (Net Capacity 193 L, 81 kg*), 410 L (Net Capacity 377 L, 158 kg*), 450 L (Net Capacity 414 L, 173 kg*), 499 L (Net Capacity 459 L, 192 kg*)
*The weights above are counted under the circumstance that the density of the cryogenic liquid is 0.42 kg/L.
Q: What is the ideal working pressure of the LNG Vehicle cylinder?
A: The ideal working pressure is 0.8 Mpa - 1.2 Mpa, while the nominal working pressure is 1.59 Mpa.
Q: What is the warranty of your Products?
A: The warranty for the vacuum of equipment is 3 years from the date of sale.
All components come with a limited 1-year manufacturer warranty on defects in material or workmanship from the date of purchase to the original owner.
Q: What trade terms can you apply in the contract?
A: EXW, FOB, and CIF are the regular terms we use.
Q: What are some methods of payment?
A: T/T, L/C, as well as Paypal are supported.
