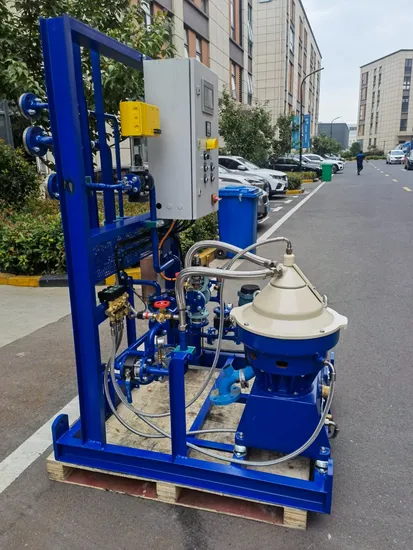

Mineral Oil Waste Oil Crude Oil Water Disc Centrifuge Separator

Product Description

Product Description Mineral Oil waste oil crude oil water Disc Centrifuge Separator A waste oil centrifuge works by exerting gravitational forces up to 12,000 Gs to separate sediment and water from waste oil. This force separates particles as small as 1 micron from the waste oil. The centrifuge has a flow-through design that enables the continuous flow of the separated contaminants through separate outlets.
Industrial waste oil centrifuges offer a large processing capacity. Continuous three-phase separation is the key to the efficient separation of waste oils.

Three-phase separation means the separation of the three phases in contaminated oil. The 3 phases are the light phase - oil, heavy phase - water, and sludge.
A waste oil centrifuge is a heavy-duty, industrial-grade machine. It has the added capacity to self-eject the separated solids. It also discharges the separated water continuously through a discrete heavy-phase outlet.

Waste Oil Centrifuge Can a disc centrifuge separate emulsified waste oil? A disc centrifuge can break some types of emulsified waste oils especially simple physical emulsion of waste oil can be split at a high temperature (200 F). A longer residence time i.e. low flow rate is helpful in breaking emulsions.
Can a waste oil centrifuge remove fine metal contaminants from the oil? A disc stack centrifuge exerts over 7,000 Gs of centrifugal force which is adequate to pull metal particles down to 0.5 micron level. Our field testing has shown remarkable reduction but not the total elimination of metal particles from waste oil. So, yes, a disc stack centrifuge can remove fine metal particles from waste oil to a certain degree.
Can your waste oil centrifuge separate antifreeze or glycol from the oil? Yes, our waste oil centrifuges are 3-phase; high G-force separators that simultaneously separate sludge and water/antifreeze from the oil.
What happens to the separated sludge in a waste oil centrifuge? Our self-cleaning disc centrifuge automatically eject out the separated sludge periodically during the process. The centrifuge does not need to stop for the sludge ejection cycle.
Can we use a waste oil centrifuge for other applications such as diesel purification? Yes, a waste oil centrifuge is multi functional and can be used for other applications such as diesel/water/sludge separation, lube oil conditioning, industrial oil recovery, etc.
The centrifuge needs a small internal adjustment to adapt to a different separation application.
How does a disc stack centrifuge differ from other open bowl waste oil centrifuges? A disc stack centrifuge is an industrial centrifuge that exerts an extremely high centrifugal force compared to open bowl centrifuges. Also open bowl centrifuges only separates some of the sludge from waste oil whereas a disc stack centrifuge removes all the sludge AND water from waste oil.
Is a waste oil centrifuge a flow-through type separator? A waste oil centrifuge is a flow-through or continuous separator. The contaminated waste oil enters the centrifuge, and clean oil, water, and sludge are discharged from the centrifuge. This is a concurrent process that does not need the centrifuge stoppage for cleaning.
Can a waste oil centrifuge remove the black color from waste oil? Though a disc stack type centrifuge removes most of the metal particles and some ash from waste oil, it does not remove sub-micron carbon particles that make the waste oil appear black. Therefore, a waste oil centrifuge cannot change the color of the oil.
About Reyes:Reyes Separator has been at the forefront in the field of disc stack centrifugal separation technology for more than 50 years - which is why disc stack centrifuges from REYES Separator perform this crucial separation function exceptionally well. Today, REYES Separator is the leader in mechanical separating technology in China. REYES developments are used in a wide range of areas - in the beverage and dairy industries, in recovering and processing oils and fats, as well as in chemicals, pharmaceuticals, biotechnology and starch technology. Other applications include marine engineering, energy, oil fields and industry.
Advantages of Centrifuges Over Filters Total mechanical separation eliminates the need for filter media Automatic operation eliminates labor costs. Continuous separation without the downtime/labor associated with filter replacement. High g-force allows the centrifuge to separate particles down to 0.5µ level. A waste oil centrifuge will also separate all free water. Breaking of waste oil emulsion. Removing ash and fine metal particles from used engine oil. Fuel Oil Water Separator / Marine Oil Water Separator Stable Operation Marine oil separator is mainly used to remove water and mechanical impurities from fuel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power station so as to reduce wear of the diesel engine and other machine, and prolong engine life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid.It is divided into 2phase solid-liquid separator and oi-water-impurity 3phase separator.They are workable in land and ship,we have the CCS certificate to certify its function and usage. There are different discharge types of the oils,manually,partial,fully discharged,variable discharge etc which depends on the different materials.commonly,we define the capacity as density of 0# diesel oil ,and we have a chart to help you find out the exact processing capacity of your needs. We are not only provide the single oil separator,but also the whole unit containing the pumps,valves,heats,pipes and so on. Centrifuge machine Main Parameter:

Type	Model	Bowl No.	Drum Speed(r/min)	Rated Capacity(L/H)≥	motor power/KW≤	Application	Discharge
DR type	KYDR203	3	9000~6800	1500	3	distillate fuel oil. lubricating oil	manual discharge
	KYDR205	5	7000~6300	3000	5.5
	KYDR207	7	6500~5500	4000	7.5
	KYDR209	9	6000~5000	5000	11
	KYDR211	11	5500~4800	8000	18.5
DH type	KYDH203	3	9000~7500	1500	3	distillate fuel oil. residual fuel oil. lubricating oil	automatic fully discharge
	KYDH205	5	7000~6300	3000	5.5
	KYDH207	7	6500~5500	4000	7.5
	KYDH209	9	6000~5000	5000	11
	KYDH211	11	5500~4800	8000	18.5
	KYDH213	13	5000~4500	10000	22
	KYDH215	15	5200~4500	12000	22
DB Type	KYDB203	3	9000~7500	1650	3	distillate fuel oil, residual fuel oil,	partial discharge
	KYDB205	5	7000~6300	3300	5.5
	KYDB207	7	6500~5500	4400	7.5	lubricating oil
	KYDB209	9	6000~5000	5500	11
	KYDB211	11	5500~4800	8800	18.5
	KYDB213	13	5000~4500	10000	22
	KYDB215	15	5200~4500	12000	22

Application : 1. Clarification of mineral oil 2. Regeneration of diesel oil from engine and power plant 3. Cleaning of fuel oil / heavy fuel oil 4. Recycling of waste oil 5. Purification of lubricant oil 6. Separation of tyre oil / slop oil / motor oil 7. Separation of hydraulic oil / tyre oil / slop oil / motor oilDisc separator types:
Due to the double-conical design of the inner cavity of the drum, it can compress the slag and increase its concentration.Besides, some nozzles is mounted around the drum to spray slurry sediment, whose number and aperture are determined on the properties of the suspension, the degree of concentration and the amount of treatment.In order to improve the slag concentration, recovery device is configured with this disc separator to the discharged sediment for reuse. For the solid concentration of the slag can be increased by 5~20 times than that of the feeding materials.The processing capacity of the separator is up to 30t/h, which is suitable for suspension with solid phrase in diameter of 0.1~100 microns and concentration less than 10% (maximum to 25%).
More details picture:

Others products:
Packaging & Shipping
Our service The technical and after-sale services are listed as follows: 1. Provide free technical training, guidance and information of accessories. 2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues. 3. Our products with 1 years' warranty and life maintenance. 4. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details. 5. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation. Contact person: Cathy Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.
