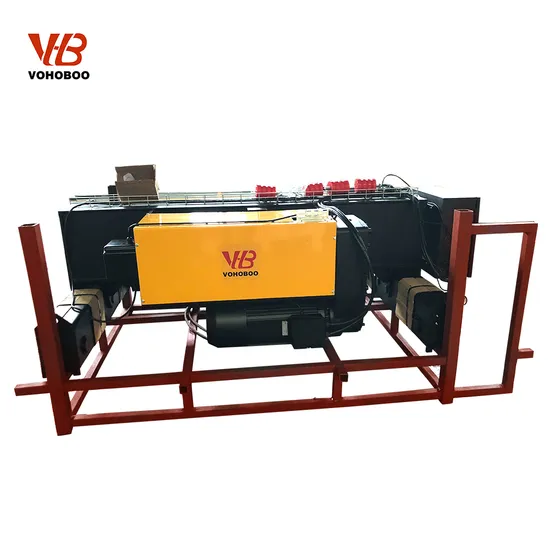

Factory Direct Sale 3.2ton 5 Ton 10ton European Type 4/1 Rope Wire Rope Hoist From Vohoboo with Limit Switch

Factory Direct Sale 3.2ton 5 Ton 10ton European Type 4/1 Rope Wire Rope Hoist From Vohoboo with Limit Switch

US$999.00 1 Piece (MOQ)

Basic Info.

Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Electric Hoist
Sling Type
Wire Rope
Lift Speed
>8m/min
Maximum Lifting Height
>20m
Chain Falls
Optional
Certification
CE
Condition
New
Color
Red
Product Name
European Type Electric Wire Rope Hoist
Power Supply
380V 50Hz 3 Phase or Customized
Working Class
M5 M6 and Others
Protection Class
IP54/55 or Others
Material
Light Weight Cast Aluminum
Trollery Travelling Speed
2-20m/Min
Contractor
Famous Brand
Feature
Double Speed/Single Speed
Control Method
Pendant Cable Control
Standard Lifting Height
6/9/12/18/24/30 Meters
Hook
Forged
Core Components
Motor, Gear, Gearbox
Safety Device
Include Overload Limiter,Height Limiter,etc.
Wire Rope Hoist Type
Low Headroom, European
Wire Rope Characteristic
Galvanized,Anti High Tension,Wear-Resisting
Transport Package
Standard Export Packing
Specification
3.2ton-12.5ton
Trademark
VOHOBOO
Origin
Hubei, China
HS Code
84251100
Production Capacity
5000sets Per Month

Product Description

Product Description
Detail Features:
1) Lifting Motor
Ip55 protecting level, F level insulation
High efficiency double speed lifting motor, ratio 6:1
60% ED, strong power and sufficient stock
With thermal protecting function to prevent from over temperature
Sturdy and durable aluminum alloy motor, light weight, good heat dissipation
High-tech totally enclosed aluminum alloy gearbox
Quenched and fine ground gear makes motor stable and low noise
Free maintenance design:no need to change lubrication oil in lifetime
DC brake, quick response
The safety factor of brake is higher than 180%, manual release for optional
With self-adjust function
More than one million times brake operation
2) Traveling Motor
Motor ,gearbox and brake three-in-one
Compact structure ,small size and light weight
Direct drive flexible design, stable torque transfer
30% rotational efficiency higher than traditional coupling
Suitable for frequency reverse switching
Squirrel cage variable frequency motor 60% ED
IP55 protecting level, H level insulation
Safe and reliable DC brake
Aluminum alloy shell, hard tooth surface reducer, well sealing without oil leakage
3) Imported Wire Rope
High strength pressed solid galvanized wire rope
2160N/mm² tensile strength
40% smaller than traditional wire rope
Good flexibility and long service life
Press rope block for special use, intensively layout to prevent form loose, fastening is more reliable
Fusible cutout rope technology,fusible surface is firm
Effectively prevent from loose to extend service life
Product Details
Product Parameters
Type
 Load Capacity
(T)
 Lifting
Height(m)
 Lifting Speed
(m/min)
 Traveling Speed
(m/min)
 Lifting Motor Power
(kw)
 Rope Dia.(mm)
 Group
(ISO)
 Rope
Reeving



Single Girder
Type
 3.2
6/9/12/15/18
5/0.8
20/5
3.2/0.45
7
M5
4/1
5
6/9/12/15/18
5/0.8
20/5
6.0/0.9
9
M5
4/1
6.3
6/9/12/15/18
5/0.8
20/5
6.0/0.9
9
M5
4/1
8
6/9/12/15/18
5/0.8
20/5
9.5/1.5
13
M6
4/1
10
6/9/12/15/18
5/0.8
20/5
9.5/1.5
13
M5
4/1
12.5
6/9/12/15/18
5/0.8
20/5
12.5/1.9
13
M5
4/1





Double Girder
Type
 5
6/9/12/15/18
5/0.8
20/5
6.0/0.9
11
M5
4/1
10
6/9/12/15/18
5/0.8
20/5
9.5/1.5
15
M5
4/1
12.5
6/9/12/15/18
5/0.8
20/5
12.5/1.9
15
M5
4/1
16
6/9/12/15/18
4/0.6
20/5
16/2.6
18
M5
4/1
20
6/9/12/15/18
4/0.6
20/5
16/2.6
18
M5
4/1
20
6/9/12/15/18
3.4/0.5
20/5
16/2.6
18
M5
4/1
25
6/9/12/15/18
3.4/0.5
20/5
16/2.6
18
M5
4/1
40
6/9/12/15/18
4.9/0.8
20/5
38
20
M5
4/1
63
6/9/12/15/18
3.3/0.5
20/5
38
20
M5
4/1
