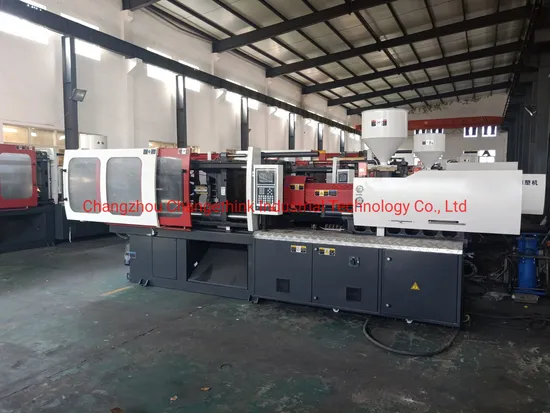

Advanced Lty-7800 Servo Type Injection Molding Equipment for Precision
| US$90,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-7800
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
780T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description
| SPECIFICATION | LTY7800 | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 90 | 95 | 105 | 110 |
| SCREW L/D RATIO | L/D | 23.2 | 22 | 19.9 | 19 |
| SHOT VOLUME(THEORETICAL) | cm3 | 2861 | 3188 | 3894 | 4273 |
| INJECTION WEIGHT(PS) | g | 2603 | 2901 | 3543 | 3888 |
| INJECTION RATE | g/s | 574 | 640 | 781 | 858 |
| INJECTION PRESSURE | MPa | 195 | 175 | 143 | 130 |
| SCREW SPEED | rpm | 115 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | KN | 7800 | |||
| OPEN STROKE | mm | 980 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 980x980 | |||
| MAX.MOULD HEIGHT | mm | 1000 | |||
| MIN.MOULD HEIGHT | mm | 400 | |||
| EJECTOR STROKE | mm | 280 | |||
| EJECTOR FORCE | KN | 210 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | kW | 37+37 | |||
| HEATING POWER | kW | 56.7 | |||
| MACHINE DIMENSION(L*W*H) | m | 11.2x2.37 x 2.55 | |||
| OILTANK CUBAGE | L | 1200 | |||
| MACHINE WEIGHT | t | 43 | |||
