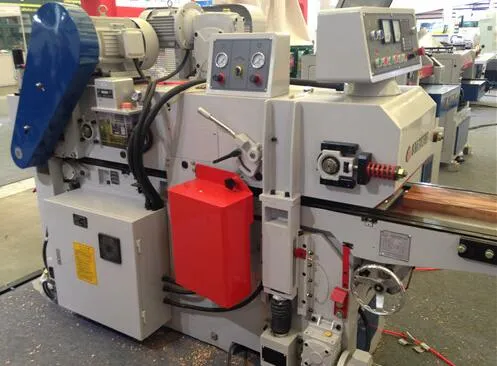

MB206h Double Side Electric Wood Planer Machine

Product Description

MB206H Double Side Electric Wood Planer Machine with Thickness Woodworking Planer Blades
Main technical parameter:

Working width	630 mm
Working thickness	150 mm
Min. working length	260 mm
Max. cutting depth (upper spindle )	7 mm
Max. cutting depth (bottom spindle )	5 mm
Tool cutting circle diameter	101 mm
Spindle speed	5000 r/min
Feed speed	6-26 m/min
Upper & bottom spindle motor	15/11kw
Feed motor	4 kw
Machine weight	2800kg

Product Application
• With good shock-absorbed quality&table casrting lathe and numera-controlled processing center thatcan process all materials once,it is good for knife spindle and feeding.
• The main spindle is processed specially and the other inported spindles with high precision can well support the whole machine.
• With elastic pedrail scratcher(optional infunctions);the pressed distance of the elastic scratchers can be chose according to the thickness and curvature of the wood so asto increase the processing precision and strengthen the feeding.
• The knife spindle,pressing roller and stable feeder on the lathe with maunual and automatic adjustable structure make sure the orientation mori speedily and exactly.
• Impported electrical components keep the whole machine works fast and safely.H-shaped series of products are equipped with imported munerical display unit,the processing thickness can be controlled directl on operation panel.the precision can be up to 0.01mm and the feed speed can be adjusted .
• The worktable is processed specially to become more wearable.

detail pictures :
SOSN history
SOSN Woodworking Machine is focus on design and manufacture of professional woodworking
machines over 30 years.
The Main products of SOSN Woodworking Machine are precision panel saw, edge banding machine,
drilling machine and CNC router. We have mare than 70 sales agents in China domestic market, and
21 sales agents in 12 foreign countries of oversea market. Our customers and agents are from
Southeast Asia, The Middle East, America, Europe, and so on.
Professional design, Lean manufacturing, 24 hours on line service ensure we supply high quality
product to customer on time.
In 2015, Holzer Company from Iran joined us to be a partner. With the powerful help of our Iran
technical Engineers, we design and manufacture new electronic panel saw and edge banding
machine.
SOSN Woodworking Machine are always researching and manufacturing professional and
economical woodworking machines to our customers.
Note 1. This price is based on voltage 380v,50hz,3ph
2.Warranty : 2 YEARS.
3.Payment terms: 30% deposit by TT , 70% before ship by TT.
4.Package : standard wooden case, packaging charge is included in the offer above.
5.Delivery time: 15 work days after recive deposit.
6.MOQ : 1 set.
