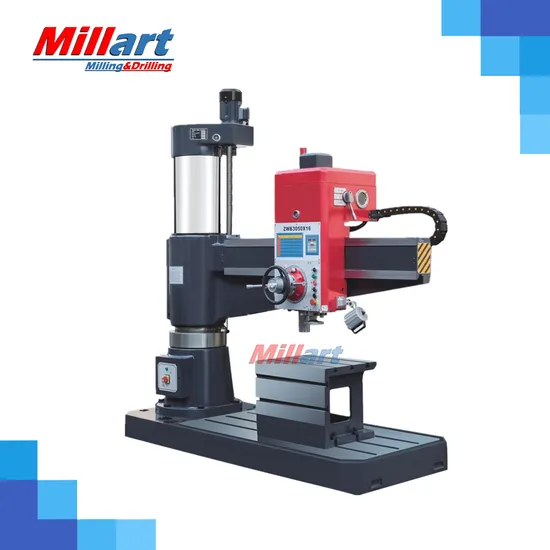

Zwb3050X16 Radial Drilling Machine, Rocker Drill Machine

Product Description

Product Description
Technical parameter :
Feature :
New designed drilling machine for drilling, tapping and reaming.
Spindle speed with 2 steps, variable speed and display.
Separately feeding motor, feeding rate variable and display.
Enlarged the module of the gears, easy for heavy duty drilling.
Oil-lubricated gearbox, which includes ground and hardened gears made of high quality alloy steel;
Heavy weight and rigid drill design ensure stability and vibration-free operation;
Control panel located on the front of the drill for better performance and ergonomics;
The ground surface of the column provides easy, free and precise travel of the arm;
High speed range for precise and fast machining;
Technical parameter :

Model	ZWB3050×16
Max.drilling dia (mm)	50
Max tapping dia (mm)	M30
Distance from spindle nose to base (mm)	320-1220
Distance from spindle axis to column (mm)	350-1600
Column diameter (mm)	350
Spindle travel (mm)	315
Spindle taper	MT5
Spindle speeds range(r.p.m)	20-200/200-2000
Spindle speed step	Variable
Spindle feeding rate(mm/min)	12-127
Spindle feeding step	Variable
Worktable dimensions (mm)	630x500x500
Base dimensions (mm)	2400x1000x200
Rocker rotary angle	360 degree
Main motor power (kw)	4
Lifting motor power (kw)	1.1
Weight (kg)	3500
Overall dimensions (mm)	2600x1120x2600

Sandard accessories:
Box type worktable
Drill chuck
Taper sleeve
Wrench
Optional accessories:
Spindle guard
Machine vise Company information:
