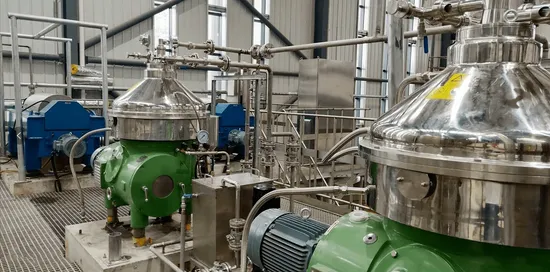

Industrial Scale High Quality Lube Oil Disc Stack Centrifuge Separator for Lubricating Oil Purification

Product Description

Product Description
starch centrifuge for wheat starch manufacturer Disc separator is mainly used in the starch production that coming from maize, manioc, wheat, potatoes or other material sources for separating, concentrating and washing of starch and protein. The machine can also be applicable to the pharmaceutical, chemical and food industries for producing of material sources which are adapted to the functions of this machine.
Design Capacity 5000-15000 L/H Disc Oil Centrifuge Separator Used Animal Fat Clarification Product description: The oil quality affects the human ...
During the dep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.
Three separation disc type separator centrifuge for animal oil factory is mainly used in refining meat oil from animals such as fishmeal facotry,animal oil factory, the capacity from 10t/d~600t/d.
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, low noise, good separation. The materials of centrifuge which contact with the parts are stainless steel which meets the requirements of food grade.
The disc separator is specially used for the two-phase and three- phase separation. The two-phase separation is to separate the suspended solid from liquid or two liquids which have the different specific gravity and are immiscible. The three-phase separation is to separate the two immiscible liquid phases and a phase of solid at the same time.
The materials are transmitted to the heart parts of this machine, the inside of the drum. Under the action of strong centrifugal force, the materials (mixed liquid) pass through the intervals of a group of disk pieces bundles, and then through the neutral hole of the disk pieces as the interface, the liquid with higher density (heavy phase) moves outward the neutral hole along the disk pieces, among which, the heavy residues accumulate in the sediment area, and the heavy phase flows to the large centripetal pump. The liquid with lower density (light phase) moves inward and upward along the disk pieces wall and gathers in the small centripetal pump. The heavy phase and light phase output by the large centripetal pump and small centripetal pump respectively.
Technical parameter

Main parameter	DPF 445	DPF 530	DPF 550
Bowl Inner Diameter	445 mm	530 mm	550 mm
Disc Number	73	80	110
Bowl Rotating Speed	5100 rpm	4650 rpm	4500 rpm
Separating Factor	6480	6400	6230
Capacity	35000~40000 L/h	45000 L/h	75000 L/h
Motor Power	37 Kw	37 Kw	55 Kw
Nozzle	10	10	12
Dimension (L×W×H) mm	1503×1129×1516	1430×1174×1544	2044×1320×1954
Weight (kg)	1100	1550	2100
Warranty	1 year	1 year	1 year

Main Features 1) Used to remove protein ,gum from starch slurry. 2) Fully stainless steel. 3) Speed ,vibration display. Convenient operation. 4) Running continuously. 5) High rotating speed ,high seperating factor. 6) Low power and water consumption.
Product model list

Model	Flowrate	Inlet pressure	Outlet pressure	Power	Weight
DHZ470	2500-7000 LPH	0.05 MPA	0.1-0.25 MPA	15 KW	1880 KG

Product Advantage

1. Continuous feeding

2. High separation factor

3. Automatic residue discharging

4. Concise bowl design without frequent washing

5. Hydraulic coupling driving with longer service

6. PLC system automatic control
Details
Working principle The bowl driven by the motor through the friction clutch spiral gear pair rotates around the main shaft at a high speed. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disc seats and their holes in it. Solid material settles onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces of discs to the main shaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out the heavy liquid outlet.
Main feature The bowl driven by the motor through the friction clutch spiral gear pair rotates around the main shaft at a high speed. Stock liquid flows into the bottom of bowl's wall through the bottom edge of disc seats and their holes in it. Solid material settles onto the inner surface wall of the bowl and forms into the residue by the centrifugal force field. Then the residue will be discharged manually after the machine stops. Light liquid flows along up the outer cone surfaces of discs to the main shaft center, passes through the light liquid centripetal pump and drains out of the light liquid outlet. Heavy liquid flows along the inner tapered surface of disc down to the bowl's wall and then passes through the heavy liquid centripetal pump and drains out the heavy liquid outlet. Main applications It is used for preconcentration of starch, separation of starch and gluten, concentration of gluten and clarification of process
water.
