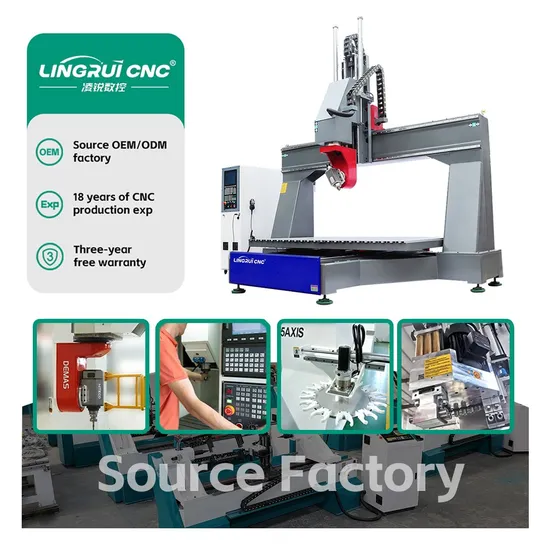

High Quality Automatic Wood Cutting CNC Router Woodworking Engraving Machine 5 Axis Wood CNC Wood Router Machine for Wood Carving

Product Description

Product Description
Advantages of the Five-axis Wood CNC Router : 1: L-shaped Demas 5 axis head is one of the main discarded parts of atc 5 axis cnc router;
2. ATC system brings free hands for 5 axis cnc router operation;Carousel changer tool can control 8/12/16/24 tools;It has a fixed structure, performs smoothly and high speed;
3. The 5 axis CNC ROUTER adopt heavy duty machine structure, which is treated by annealing treatment twice. So machine's stability is improved greatly.
4. Can be applied to solid wood furniture, PVC/PP/PE, ABS, rubber, polyurethane, glass fiber, carbon fiber and other composite materials for grooving, chamfering, punching, hook grooves and other processes and multiple angles of high precision and high efficiency processing.
Detailed Photos

Product Parameters

model	2020	3020	3030	3040
X-axis travel	2000mm	3000mm	3000mm	3000mm
Y-axis travel	2000mm	2000mm	3000mm	4000mm
Z-axis travel	1200mm
XY axis fast moving speed	50m/min
Z-axis fast moving speed	18m/min
A/C axis rotation	±120/±360
A/C axis fast moving speed	3000m/min
Standard spindle	Water cooling/HSK63F/24000rpm
Spindle power	Standard 15kw, optional 12kw, can also match non-tool-changing spindle
Spindle torque	11.9 n·m
Cutting speed	1-20000mm/min
Fast moving speed	X 50m/min Y.50m/min Z:18 m/min
Positioning accuracy	X:0.05mm/m Y:0.04mm/m Z:0.02mm/m
Repeat positioning accuracy	X:0.025mm/m Y:0.02mm/m Z:0.015mm/m
operating system	Taiwan LNC system/Taiwan Syntec system
Number of tool magazine positions	06/8/10
Workbench size	2020mm×2020mm	3020mm×2020mm	3020mm×3020mm	3020mm×4020mm
Maximum load of workbench	3000kg	5000kg	6500kg	3600kg

Italian high-precision special five-axis spindle Modular working platform for easy operation
Disc type automatic tool changer Can accommodate various types of tools and
automatically change tools during operation
Taiwan LNC five-axis control system The heavy-duty gantry frame is quenched and stable and durable. Company Profile

We offer a three-year warranty maintenance policy for the entire machine. During the warranty period, if any parts are damaged due to the machine's own reasons, we will provide you with free parts for replacement.
Machine lifetime free maintenance and free software updates.
If you need it, our engineers can provide technical support on-site in your country.
Before the machine is shipped, we will provide you with comprehensive instructional videos.
7 * 24-hour service, whether on weekdays or weekends, upon receiving a fault report, respond within 10 minutes through online chat, phone, fax, or email, and find the cause of the fault within 60 minutes.
We provide lifelong free technical support, machine installation, drawing and programming, machine operation, machine maintenance, and lifelong after-sales solutions for our customers.
Certifications
FAQ
1.Are you a factory or a trading company?
We are a factory with an export license.
2.Can you do OEM?
Yes, We have been cooperating with many trading companies and OEM manufacturing for few years.
3. What is after-sales service?
We have 17 years of after-sales service experience. No matter what problems your machine has we will respond within 10 minutes and solve them within 2 hours. The entire machine comes with a 3-year warranty and technical support is provided through phone, email, WhatsApp, and Skype
4.How to choose the appropriate machine?
You can tell us about the material, size, and machine function requirements of the workpiece. We can recommend the most suitable machine based on our experience.
5.Do you have installation and equipment debugging services?
Yes,we do. The machine has been installed and debugged before leaving the factory. After receiving the machine, you can use it directly. We provide a complete and free operation manual and instructional video and as well as we can also have our technical personnel go to your country to install and debug the machine.
6.Can the machine be customized according to my requirements?
Yes,customization is possible. We have a professional team with professional experience. Our goal is to satisfy our customers.
7.Can I process a sample video to confirm the machine's functionality?
Yes you only need to provide drawings or photos, and we can provide you with free processing samples and recording videos.
8. What are the payment methods?
There are two payment methods.
(1)T/T refers to international bank transfers. 50% deposit, then we start to produce machines for you. 50% before shipment convenient and fast.
