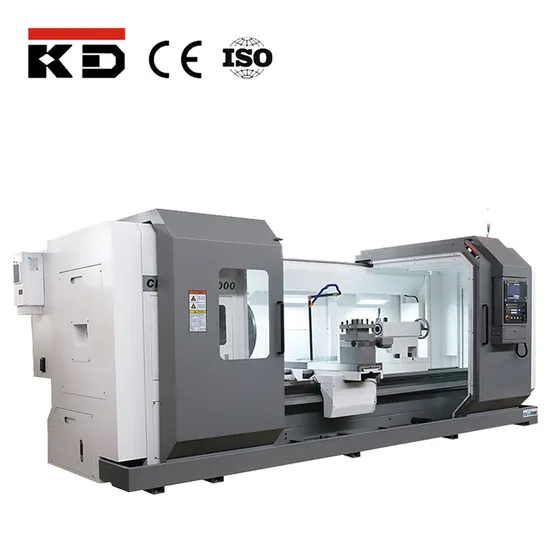

Big Bore Flat CNC Lathe Ck6191b/4000
| US$15,000.00-30,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
CK6191B/4000
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Tool Post
4 Way, 6 Way Is Optional
Features
with Mechnical in Head Box
Controls
Fanuc or Siemens
Chuck
Hydraulic or Manual
OEM
Yes
Colour
Any Colour
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
180 Sets/ Year
Product Description
FEATURES AT A GLANCEPRODUCT SPECIFICATIONS
| MODELS | CW6291B | CW62100B | CW62110B | |
| CAPACITY | ||||
| Max. swing over bed | Ф910mm | Ф1000mm | Ф1100mm | |
| Max. swing over carriage | Ф580mm | Ф580mm | Ф680mm | |
| Max. swing over gap | Ф1100mm | Ф1200mm | Ф1300mm | |
| Effective length of gap | 400mm | |||
| Width of bed | 600mm | |||
| Max. length of workpiece | 1.5/ 2/ 3/ 4/ 5/ 6/ 8m | |||
| Max. turning length | 1.35/ 1.85/ 2.85/ 3.85/ 4.85/ 5.85/7.85 m | |||
| Max. weight of workpiece | 2000kg | |||
| SPINDLE | ||||
| Spindle nose | D11 | |||
| Spindle bore | Ф105mm | |||
| Taper bore of spindle | Metric Ф120 1:20 | |||
| Steps of spindle speed | 4 STEPS | |||
| Range of spindle speed | 10~630rpm | 5~645rpm | ||
| FEED RANGE OF TOOL POST FOR PER REVOLUTION OF SPINDLE | ||||
| Number of longitudinal feeds | 64 | |||
| Range of longitudinal feeds (1:1) | 0.1~1.52mm/r | |||
| Range of longitudinal feeds (16:1) | 1.6~24.3mm/r | |||
| Number of cross feeds | 64 | |||
| Range of cross feeds | Half of longitudinal feeds | |||
| RAPID TRAVEL | ||||
| Longitudinal | 4000mm/min | |||
| Cross | 2000mm/min | |||
| THREADING | ||||
| Metric pitch threads | 1~240mm/ 50 | |||
| Whit-worth threads | 14~1TPI/ 26 | |||
| Module threads | 0.5~120M.P/ 53 | |||
| D.P.Threads | 28~1DP/ 24 | |||
| TAILSTOCK SLEEVE | ||||
| Taper bore | M.T.NO.5 | |||
| Max travel | 250mm | |||
| External diameter | Ф100mm | |||
| OTHERS | ||||
| Vertical distance from spindle center to installing basis | 33mm | |||
| Max travel of compound rest | 200mm | |||
| Swing angle of tool post | ±90° | |||
| Max travel of cross slide | 500mm | 570mm | 620mm | |
| Size of tool shank | 32×32mm | |||
| Main motor power | 11kw | |||
| Rapid feed motor power | 1.1kw | |||
| Coolant pump power | 90w | |||
| 3m machine overall dimension | 5155x1450x1630mm | 5155x1450x1685mm | 5155x1450x1735mm | |
| 3m machine net weight | 7050kg | 7550kg | 8050kg | |
