PS 300 Ferroscan System Concrete Detectorrebar Imager

Product Description

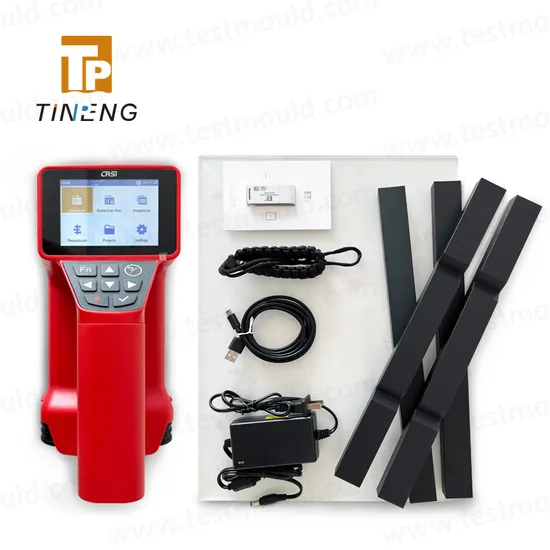

Product details TP709 FERROSCAN SYSTEM CONCRETE DETECTOR REBAR IMAGER
Applications: The model: TP709 can use images to truly present the distribution of steel bars and impurities inside the concrete structure, and test the number of steel bars inside the concrete structure, the thickness of the protective layer and the spacing of steel bars. The test is completely free from the influence of the hoop bars, and can test the inclined steel bars and dense steel bars. Technical Data: 1. Image display: color shows the thickness of the protective layer of steel reinforcement, also showing the thickness of the protective layer of steel reinforcement, steel spacing 2. Test range of protective layer thickness: 0-210mm (the larger the diameter of reinforcement, the deeper the test depth) 3. Measuring range and accuracy:

Range/Error Rang(mm)	Small Range (mm)	Big Range(mm)
±1	1~80	5~80
±2	81~120	81~120
±3	-------	121~210

4. Application range of reinforcement: dia. 6~ dia.50mm Standard Rebar 5. Positioning accuracy: 1% or ±1mm 6. Maximum scanning distance: 50m, with real-time scanning and recording scanning functions 7. statistical function: at any time display the specified channel steel bar position, protective layer thickness, deviation, qualified rate 8. fixed point retest: 1~6 times, users can set at will, retest value list 9. scanning area grid Settings: 600*600mm or 1200*1200mm optional 10. Regional scanning: Software can splice image scanning data 11. filter range: 0~200mm, conducive to eliminate invalid data 12. path selection function: 1~7 Optional 13. Component type: According to the state, all component types can be selected 14. data storage capacity: not less than 32G (SD card can be expanded) 15, data interface: USB (can be used as a card reader) 16, data transmission rate: 4MB/s 17, display type: 480X320 lattice TFT LCD, touch screen, capacitor screen 18, power supply: battery working voltage 7.1~8.4V, battery life: 24 hours 19. Protection level: IP54 20. Weight: 1.2kg 21, size (mm) : 240*132*135 22, relative air humidity 90% 23. The operating temperature is -10~50ºC, and the storage temperature is 25~60 ºC
