High Efficiency 6-8 T/H 1.2cbm Hy120 Mobile Self Loading Lift Concrete Mixer Truck with Spare Parts

Product Description

High Efficiency 6-8 T/h 1.2cbm HY120 Mobile Self Loading Lift Concrete Mixer Truck With Spare Parts

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck
Main Feature 1. The self mixing concrete truck can automatic feeding, measuring, mixing and discharging concrete.
2. The self loading mixer for sale has easy operation, high working efficiency, high mixing effect.
3. It has independent water supply system, which can ensure the high quality of concrete. 4. It just need one operator to drive, load, and mix raw material while moving it.
Product Parameters

Name	Item	Specification
Whole vehicle	Net	3500KG
	Transmission	Full Hydraulic
		4 WD
	Brake	Air Brake
	Chassis	Off-road
	Loader bucket	capacity	0.2m³
		Control	Hydraulic
	Tilt angle	30%
	Speed	High	0-30KM/H
		Low	0-9KM/H
	Mini turning radius	6.5M/R
	Tyre model	10-16.5
Engine	Type	Yunnei
	Rated Power/RPM	42KW/2400RPM
	Cylinder	4
	Starter	Electric
	Cooling type	water cooling
Maxing Drum	Output capacity	1.0M³
	Bank Angle	16 °
Chute	Swing Angle	≥60°
	Angle control	Manual
Loader control	Hydraulic 4 way stick
Over size	4400x2100x2900mm

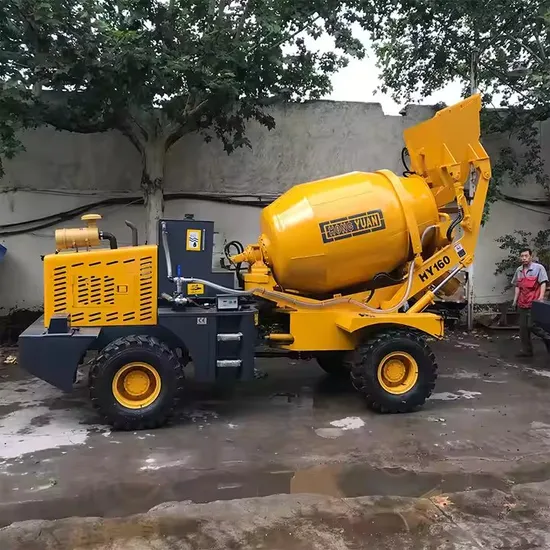

Detailed Photos
