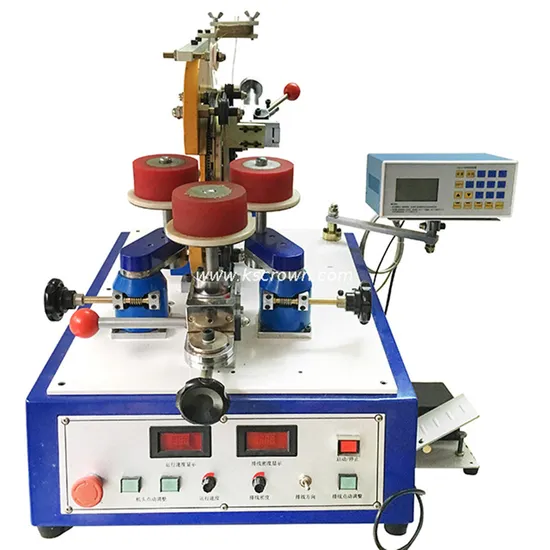

Wl-2630 Automatic Toroidal Transformer Coil Winding Machine Coil Winder

Product Description

WL-2630 Automatic Toroidal transformer coil winding machine coil winder
Feature:
1.Stable pulling force, small inner diameter, fast winding speed, no damage to the wire
2.It is suitable for winding products with small diameter and many turns, such as primary and secondary windings of small toroidal transformers, primary windings of high-power toroidal transformers, and transformer coils.
3.The wire storage ring of different widths can be replaced on the same model to meet the wire storage capacity and complete inner diameter of products of different sizes, and the application range is wider.
4.Suitable for winding enameled copper wire, enameled aluminum wire, steel wire, nylon wire and more, which can be used for coil processing of products in various industries.
Specifications:

Model	WL-2610	WL-2630	WL-2631	WL-2700	WL-2800
Winding method	side slip type	side slip type	side slip type	side slip type	side slip type
Finished outer diameter	30/80	60/120	60/120	60/200	60/200
Minimum finished inner diameter	18	30	35	35	50
Final completion height	40	80	80	100	120
Suitable winding diameter range	0.12-0.5	0.2-0.7	0.2-0.7	0.2-0.75	0.35-0.9
Storage ring diameter	180	195	195	230	260
Storage ring width	3-6	3-8	9-12	9-15	12-18
Max speed	800 rpm	800 rpm	800 rpm	700 rpm	600 rpm
Working voltage	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz	220V/50Hz
Dimensions	480×450×600	500×600×700	500×600×700	500×600×750	500×600×800
Weight	90 kg	90 kg	90 kg	100 kg	110 kg

Product Show:
Application Terminal:


Certification below

Pls note that we have REAL CE certification for this two end wire stripping cutting crimping machine .
ALso there are many models for your reference.
You may also like

Company Information
Our service 1. On-time delivery and the shortest delivery time.
2.1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
3.OEM and customized service.

---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it's our pleasure to make a recommendation and comparison models to you.

---Technical Support
User manuals will go with relative machines.
If you have any problem with operation, please feel free to contact us.

---QC Check before shipment
All products will be checked before delivery.
