China Swiss Type Sc Standard Manual Chuck Machiery Swiss CNC Lathe with Collect Chuck

Product Description

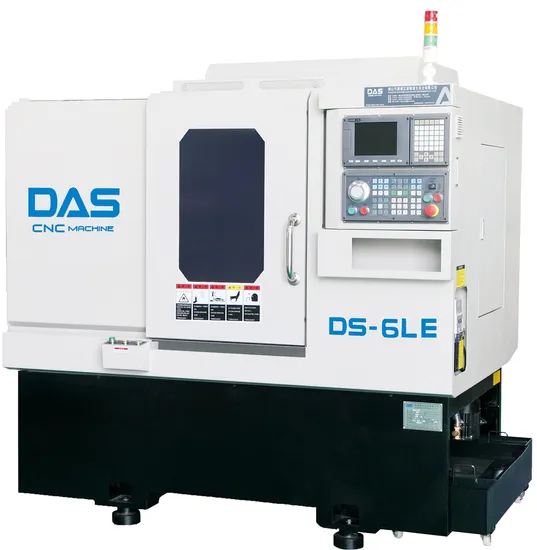

DAS DS-5/6LE Long Travel Torno CNC High Precision Metal Automatic Slant Bed cnc lathe with end millings Product Description
- Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other company's numeral control system can also be used when user requires so.

- Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.

- Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.

Name	DS-5LE	DS-6LE
Adjacent tool change time (s)	0.3
Tool change style	Random
Square knife knife holder (mm)	20X20
Round hole knife holder (mm)	φ20
With chuck size	5 Inch	6 Inch
Spindle speed (r/min)	1-4500
Spindle bore (mm)	φ46	φ56
Center height (mm)	56
The maximum diameter of rotation (mm)	380
Spindle motor power (KW)	5.5	7.5
Minimum system Resolution	0.001
X/Z Axis stroke (mm)	1040/330
X/Z axis fast moving speed (m/min)	30
X/Z axis Repetitive positioning accuracy (mm)	±0.003
Taper (mm)	≤0.003/100
Card position size (mm)	≤0.003
X servo-motor (KW)	1.3
Z servo-motor (KW)	1.3
Hydraulic station (KW)	0.75
Water tank motor power (KW)	150W
Cooling water tank capacity (L)	60
Bar feeder center height (mm)	1120
Weight (KG)	2800	2900
Size (L*W*H mm)	2400x1500x1950
Power (KW)	13	15

1.X axis travel:1040 mm.
2.Machine tool bed is casting with resin sand, with the inclination of 45°, easy to operate and remove chips.
3.Transmission part adopts Taiwan HI WIN/P MI P3 levels ball screw, and adopt the Type 35 linear guide rail to enhance rigidity.
4.Accessories imported from Japan and Taiwan.
5.Taiwan controller system, four-axis;Other brand controller can be chosen.
6.Can be equipped with 3x3 or 4x4,side milling,end milling,end and side milling power head, realizing the turn-milling combined-type processing, simplifying the processing of complicated product, and reducing the trouble caused by secondary processing and improving product precision.
Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .
Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes,featuring space saving, low cost and diversified arrangement etc.They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us the first consideration when you purchase high-precision machine tools.
