Saddle Moving Type Surface Grinder Grinding Machine

Product Description

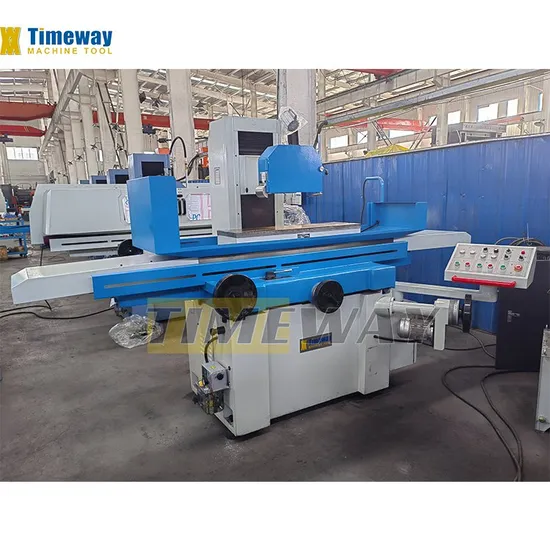

Saddle Moving Surface Grinding Machine AH AHR AHD Features: SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000. Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (AH series), AC motor (AHR series), or AC servo motor (AHD series). SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical. SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical. SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical. High rigidity one-piece stand adopts high quality casting iron for ensuring stability and performance of whole machine. Well designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency. Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement. Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding. Double walled column construction, provide high rigid support to the grinding spindle. Closed steel guard is equipped for protecting spindle motor and guideway, which make the column safe and beautiful. The worktable is driven by imported hydraulic valve unit, realize smoothly motion without shocking. The guideway is coated with Turcite and precision hand scraped, move smoothly and keep the accuracy long life. The AHD series grinder is standard equipped with auto down feed servo motor, and controlled by PLC and HMI with built-in program. It is so easy to realize auto grinding. Standard accessories:Standard accessories: Operation manual (English edition)Operation manual (English edition), Working lamp, Balancing arbor, Standard grinding wheel, Magnetic chuck, Built-in magnetic chuck controller, Coolant tank, Wheel flange and extractor, Wheel dresser stand, Leveling wedge and screw, Lubrication system, Tool box & tools. Working lamp Balancing arbor Standard grinding wheel Magnetic chuck Built-in magnetic chuck controller Coolant tank Wheel flange and extractor Wheel dresser stand Leveling wedge and screw Lubrication system Tool box & tools Optional accessories:Optional accessories: Balancing standDiamond pen, Balancing stand, Magnetic separator, Paper filter, Oil tank guard, Dust exhaust, Parallel wheel dresser, 2 axis digital readout, Extra wheel flange, Rear splashing guard, Closed safe guard, Radius dresser, Angle dresser, Side dresser, Sinusoidal magnetic table, Electronic handwheel. Magnetic separator Paper filter Oil tank guard Dust exhaust Parallel wheel dresser 2 axis digital readout Extra wheel flange
Technical parameter:
Specification	Unit	SG-2050AH SG-2050AHR SG-2050AHD	SG-2550AH SG-2550AHR SG-2550AHD	SG-3063AH SG-3063AHR SG-3063AHD	SG-30100AH SG-30100AHR SG-30100AHD	SG-4080AH SG-4080AHR SG-4080AHD	SG-40100AH SG-40100AHR SG-40100AHD
Table size	mm	200x508	254x508	305x635	305x1020	406x813	406x1020
Electro magnetic chuck size	mm	200x460	250x500	300x600	300x1000	400x800	400x1000
Distance from spindle to table	mm	450	450	580	580	580	580
Table cross travel	mm	240	275	340	340	450	450
Table longitudinal travel	mm	560	560	765	1130	910	1130
Loading capacity (include chuck)	kg	180	180	270	400	500	600
Longitudinal feed speed	m/min	5-25	5-25	5-25	5-25	5-25	5-25
Table cross intermittent feed rate	mm/str	0.1-8	0.1-8	0.1-8	0.1-8	0.1-8	0.1-8
Table cross rapid feed speed	mm/min	990	990	990	990	990	990
Table cross feed of handwheel	mm/gra	0.02	0.02	0.02	0.02	0.02	0.02
Wheelhead vertical intermittent feed rate	mm/str	AH: -; AHR: -; AHD: 0.005-0.5;	AH: -; AHR: -; AHD: 0.005-0.5;	AH: -; AHR: -; AHD: 0.005-0.5;	AH: -; AHR: -; AHD: 0.005-0.5;	AH: -; AHR: -; AHD: 0.005-0.5;	AH: -; AHR: -; AHD: 0.005-0.5;
Wheelhead vertical rapid feed speed	mm/min	AH: -; AHR: 650; AHD: 480;	AH: -; AHR: 650; AHD: 480;	AH: -; AHR: 650; AHD: 480;	AH: -; AHR: 650; AHD: 480;	AH: -; AHR: 650; AHD: 480;	AH: -; AHR: 650; AHD: 480;
Wheelhead vertical feed of handwheel	mm/gra	0.005	0.005	0.005	0.005	0.005	0.005
Spindle speed (50/60HZ)	rpm	2850/3450	2850/3450	1450/1750	1450/1750	1450/1750	1450/1750
Grinding wheel size	mm	200x20x31.75	200x20x31.75	350x40x127	350x40x127	350x40x127	350x40x127
Main motor power	kw	2.2	2.2	4	4	4	4
Machine dimensions (LxWxH)	cm	230x160x168	230x160x168	290x220x190	440x220x190	360x240x190	440x240x190
Package dimensions (LxWxH)	cm	200x210x215	200x210x215	235x222x221	295x222x221	285x227x221	295x227x221
Machine weight	kg	1650	1800	2800	3200	3400	3700
