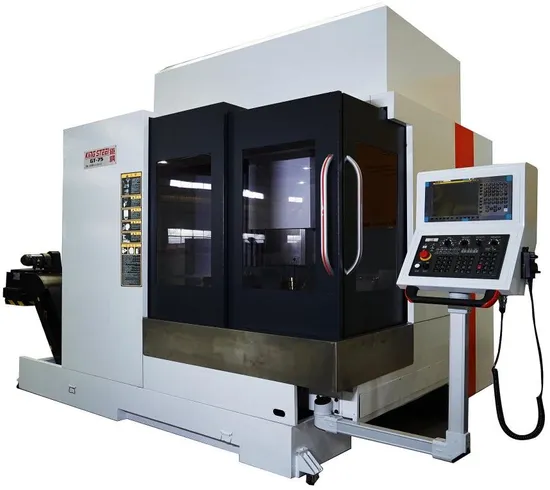

Gt-75 High Precision and High Speed CNC Vertical Machining Center Small Metal Milling CNC Machine

Product Description

Product Description
GT-75 is designed for High-Precision production of auto parts, electronic communication parts, aerospace parts, medical equipment processing, precision mold manufacturing and so on.
The GT-75 Gantry High-speed Machining Center not only has a high-rigidity and stable body structure, but also has excellent performance in high-speed and precision machining and is specially designed for high-precision small mold processing, providing you with a new choice to create advantages.
This machine is equipped with a 20,000rpm, HSK-A63 built-in electric spindle, with a three-axes cutting feed of 20 m/min and fast feed of 24 m/min, easily meeting the needs of high-speed machining high-efficiency.
The sheet metal appearance of JUGANG Precision Machinery is dominated by clean white and bright red, which is simple yet lively. Each machine meets the German Acc. VDDI 3441 accuracy standard.
Besides good spindle function, excellent ATC speed and fast displacement speed also ensure the machine's high speed and high efficiency.
This G75 high-speed and high-precision vertical machining center is the high-end level model of JUGANG and has a wide variety of optional configurations.
The three-axis travels are 750mm, 500mm and 400mm, respectively. The operation panel can be rotated 270° for easy operation

Technical Data
Model	Gt-75 CNC High Speed And High Precision Machine Center	FANUC-0i-MF PLUS(1)
Worktable	Table size	800*510mm
	Working area	750*500mm
	T-slot (Width x No. x Distance)	18mmx5pcsx100mm
	Max. loading weight	400kgs
Travel	X axis travel	750mm
	Y axis travel	500mm
	Z axis travel	400mm
	Spindle nose to worktable	150-550mm
Guide ways	X-axis roller linear width/numbers/blocks	45mm/2pcs/4pcs P grade
	Y-axis roller linear width/numbers/blocks	45mm/2pcs/4pcs P grade
	Z-axis roller linear width/numbers/blocks	45mm/2pcs/4pcs P grade
Screws	X/Y/Z screw specific	Φ40/08,Φ40/08,Φ40/08 C3 grade
Spindle	Built-in electric spindle speed	20000rpm
	Spindle motor power	20KW
	Spindle taper	HSK-A63
3 Axes	X/Y/Z motor power	4/4/4KW
Feed	X/Y/Z feed speeds	24/24/24m/min
	X/Y/Z cutting feed	1-20000mm/min
Accuracy	X/Y/Z Positioning accuracy(equipped with linear scale)	0.004mm
	X/Y/Z Repeatability(equipped with linear scale)	0.002mm
Tool magazine	Tool quantity	24T
	Max tool dia.	80mm
	Max.tool length	300mm
	Max. tool weight	8 kgs
	T-T time	2.2sec
Working conditions	Electricity	3Ф380V,50HZ,20KVA
Dimension& Weight	Approx. weight	6600kgs
	Approx. outer dimensions	3800x2450x2950mm

Detailed Photos
The machine body are made of high-grade resin sand cast iron and high-tensile casting materials, with strong shock absorption and good wear resistance and have been treated by tempering, vibration, artificial aging and natural aging to ensure that the machine can maintain the best precision for a long time.

Standard Configurations

Spindle oil chiller

Rigid Tapping

Automatic power off switch

3 colors alarm light

Cooling system (cooling pump*2)

Automatic micro lubrication for linears and screws

Separate handwheel(MPG)

Electric box heat exchanger

Fully enclosed sheet metal

Tool kit

Around spindle coolant and compressed air

Leveling screws and pads

Compressed air blow out through spindle.

Chips disc and water tank

Water gun and compressed air gun

Standard packing

3 Axes screw and linear covers

Ethernet interface

USB and CF card interface

Transformer(Specification as requirement)

10.4'' screen LCD

Chain type chip conveyor

HSK-A63-24T arm type tool magazine

Oil skimmer

Electric cabinet of air conditioner

Fagor brand XYZ axis linear scale
