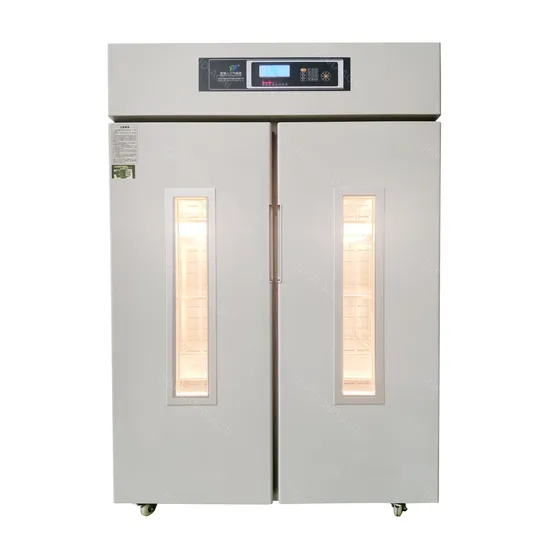

Gtop Series Intelligent Illumination Seed Germination Incubator

Product Description

Product Description
The light box is also called the light incubator, which is mainly used for light cultivation experiments such as plants. The equipment has the function of ultra-temperature sensor abnormal protection to ensure the safety of instruments and samples. The light intensity can be customized according to user requirements. It can display the experimental period (days), set time, set temperature and remaining time, actual temperature and light level. And has a cycle conversion function.Features

main model	volume	Dimensions (mm)	Liner size (mm)	time period control	temperature control scope	temperature volatility	temperature Evenness	light intensity (LUX)
GTOP-158Y	150L	525*540*1580	423*430*962	LCD 1-99 time period fully automatic	0~50ºC	±0.5ºC	±1ºC	0-8000LUX (Light is optional, for example: 3000LUX for seed germination, 5500LUX or above for seedling growth. All incubators of our company can increase the light intensity according to user requirements)
GTOP-268Y	268L	580*630*1755	476*522*1139
GTOP-310Y	310L	580*630*1895	476*522*1279
GTOP-400Y	400L	610*708*1865	490*578*1375
GTOP-500Y	500L	705*825*1971	575*654*1485
GTOP-1000Y	1000L	1230*708*1865	1110*578*1375					0~12000LX

1. The light incubator adopts a large-screen LCD display, which is easy to operate, precise in control, and has a blue backlight for easy viewing at night.
2. The mirror-surface stainless steel liner is adopted, and the four corners are semi-circular arc transitions. The partitions or partitions in the box can be disassembled without tools, which is convenient for disinfection and cleaning of the studio.
3. The program can set gradient control such as time, temperature and illumination. Time period control 99-segment programming, each time period 1-99 hours, different segmentation parameters can be set to meet the different parameters of plant growth.
4. It has the function of ultra-temperature sensor abnormality protection to ensure the safety of instruments and samples. It is equipped with LED growth lights, with more uniform illumination and higher illumination, which is beneficial to the growth of plants and improves disease resistance.
5. Visually display Beijing time, the remaining time of the period, the light level, the temperature in the box and the ambient temperature. The inner tank is equipped with a temperature protection device, and the hardware and software automatically cut off the power supply when the temperature is higher than the inner tank protection temperature to protect the test sample.
6. With sterilization function, set the sterilization time, and automatically turn off the sterilization function at the end of the sterilization time.
7. It has the function of power-down memory and automatic compensation for power-down time. After power failure, it can continue the original working state when it is turned on again.
8. The light source of the incubator adopts the LED light source suitable for plant growth, which has the advantages of low energy consumption and low heat, and the illuminance is adjustable in 3 levels.
9. The network port can be installed. The network type can view the current working status and historical temperature and humidity operation data of the box in real time on the WeChat terminal and the PC terminal, and the PC terminal can export the historical data. (optional)
Features of networked incubator:
1. Intelligent networking terminal, which can upload monitoring data in real-time.
2. Support the coexistence of mobile terminal and web terminal, which is convenient for viewing data, analysis, and management.
3. Monitor the operation of the equipment in real-time, and the abnormal alarm information can be pushed to the mobile terminal of the mobile phone in time.
Management cloud platform functions (networked incubator):
1. The self-contained instrument cloud management platform includes C/S architecture, which can summarize and analyze all online device data, data backup will not be lost, and the viewing operation methods include a web page and mobile phone (both Android/Apple systems are available).
2. The data can be uploaded to the managed cloud platform. Data in the platform can be downloaded, analyzed, and printed
3. The platform supports device data storage and provides sufficient capacity for long-term storage.
4. The platform provides report forms such as curves and tables for equipment data, and data can be exported and imported.
5. The platform can combine data to make reports, print reports, and export reports.
6. The software can be upgraded online.Specification

Temperature range	0-50°C
Temperature fluctuation	±0.5
Temperature uniformity	±1°C
Illuminance	0~5500lux (light can be customized) Can increase the light intensity according to customer requirements
Heating power	300W (GTOP-1000: 700W)
Compressor power	190W-320W
Compressor delay guard time	about 3min
Noise	<70Db
Working mode	continuous operation (compressor intermittent working)
Temperature	0-38°C, humidity<80%RH, Non-corrosiveness gas
Power	220±22V, 50±0.5HZ

Packing and Deliver
We have a professional after-sales team with global service coverage and a 24-hour time difference free to provide you with solutions.
After Sales Service
We have a professional after-sales team with global service coverage and a 24-hour time difference free to provide you with solutions.
FAQ
1. Are you a manufacturer or not?Yes, we are. We have more than 300 workers and 26680 square meters of production base in Zhejiang province which is close to Shanghai and Ningbo port. Welcome to come and visit our factory.
2. How do you guarantee the quality of your products?
We have passed ISO9001 / 14001 / 45001 quality system certification. And has a professional quality inspection team of more than 30 inspectors. Adhere to the strict quality control of each process from raw materials to packaging.
3. What is your after-sales service?
The warranty time is 1 full year, lifelong maintenance.
4. How long is your delivery lead time?
It is generally 3-5 days, but it will vary according to different products and quantities. 5. OEM available?
Yes, OEM is acceptable. Please contact us for specific information.Company Profile
TOP Cloud-Agri was founded in 2008. It is a national high-tech enterprise specializing in the design, development, manufacture, and sales of agricultural testing instruments, laboratory equipment, and smart agriculture. The core products of the company are testing instruments in seed shape measurement, seed breeding, sampling, cleaning, storage, seed vigor and health research, plant physiology, soil physical properties analysis, crops quality analysis, food safety detection, agriculture produces quality testing, plant protection, pest forecast, and monitoring, weather monitoring, water quality detection, smart agriculture solutions, and other general laboratory devices.
ΔCertificate TOP Cloud-Agri has passed ISO9001:2015,ISO14001:2015,ISO45001:2018 .Now we are speeding up the construction of Three Major Base.
Up to now, TOP Cloud-Agri has joined the National 863 project, State Star Plan Project, and other multiple national scientific research projects, and the company was awarded 18 national Invention patents, 40 utility model patents, 7 appearance patents, 140+ product software copyright, 39 software product registration; Meantime, TOP Cloud-Agri has been identified as Zhejiang Provincial Academician Workstation, Provincial Enterprise Research Institute.Customer Response
