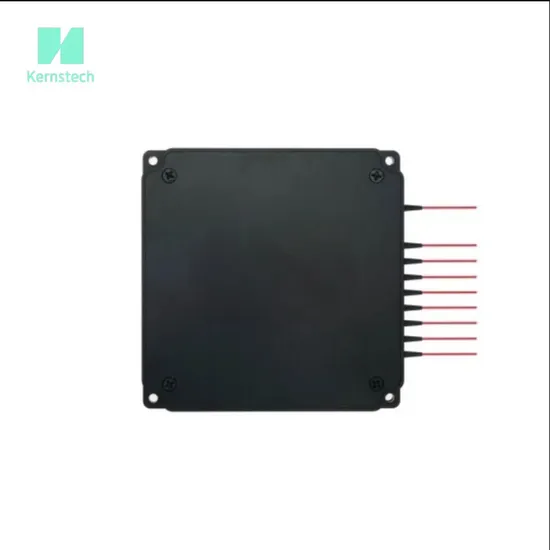

1X4 1X8 1X16 780-1550nm Pm Filter Coupler Modules

Product Description

1x4 1x8 1x16 780-1550nm PM Filter Coupler Modules Product Description
The PM Filter Coupler Modules seresismanufaclred by using adranced techmology to aow the inout signal to be splitled into mult chanels at a gien spliting raio wih high extinction ratio, low excess loss, good uniformity, low wavelength dependance and low temperature dependance. t can be widely used in fiber sensors, amplifiers, lasers, etc.Specifications

Parameter			Unit	Spec
Center Wavelength			nm	1550, 1310	1064, 980	850,780
Max.Insertion Loss@23 ºC		1x4	dB	7.3	7.5	8.0
		1x8	dB	10.8	11.2	12.0
		1x16	dB	14.4	15.0	16.5
Max. Wavelength Related Loss			dB	0.6	0.8	0.8
Uniformity			dB	0.6	0.6	0.6
Min. Extinction Ratio@23ºC		Both Axis Working	dB	18
		Fast Axis Block	dB	22
Min. Return Loss			dB	50
Max.Insertion Loss Temperature Stability (-40~85 ºC)			dB	0.5
Max. Optical Power(CW)			mW	300
Max.Tensile Load			N	5
Fiber Type				PM Panda fiber
Operating temperature			ºC	-5~+70
Storage temperature			ºC	-40~+85
Package Dimensions	ABS Box		mm	1 00x80x10 or 120x80x10
	Aluminum Box		mm	140x140x10 or Customized

Note:For device with connector, the power handling is only 1W,IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.
FeaturesHigh Return LossLow Insertion LossHigh Extinction RatioHigh stability and reliabilityApplications
Fiber SensorsFiber Optic InstrumentsPower Detection SystemErbium-Doped Fiber Amplifier & Raman Fiber Amplifier
Package Dimensions
Detailed Photos
