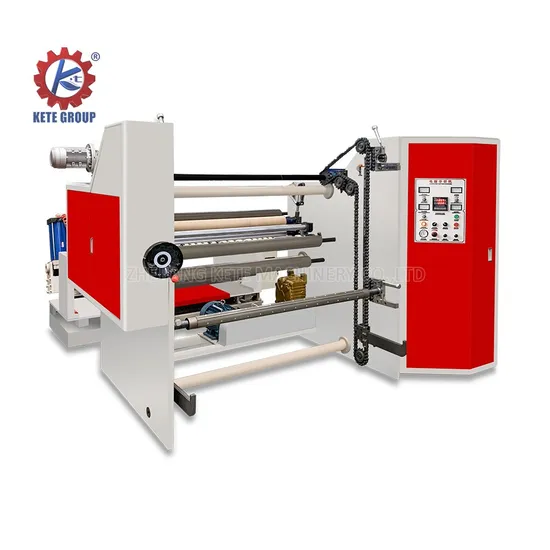

Kraft Paper Slitting Machine for Paper Slitting and Rewinding Machine Paper Slitter
| US$18,000.00-22,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KTSM-H150P
Type
Paper Slitting Machine
Work Method
Round Knife Cutting
Structure
Cutting Part
Packaging
Cartons
Classification
Paper Slitting Machine
Applicable Process
Process Materials
Suitable Substrates
Paper
Packaging Material
Wood
Product Name
Paper Slitting Machine
Keyword
Slitting Machine for Paper
Keyword 1
Kraft Paper Slitting Machine
Keyword 2
Paper Slitter
Keyword 3
Paper Slitting and Rewinding Machine
Keyword 4
Paper Roll Slitting Machine
Keyword 5
Slitting and Rewinding Machine Paper
Keyword 6
Paper Slitter Rewinder Machine
Paper Slitting
Yes
Non Woven Fabric Slitting
Yes
Round Slitting Knife
Yes
Roll to Roll Slitting
Yes
Unwind with Air Shaft
Yes
Rewind with Air Shaft
Yes
Unwind with Auto Loading
Yes
Transport Package
Wooden Pallet
Specification
3800x2800x1800mm
Trademark
KETE
Origin
China
Production Capacity
20 Sets/ Month
Packaging & Delivery
Package Size
380.00cm * 280.00cm * 180.00cm
Package Gross Weight
3000.000kg
Product Description
This Paper Slitting Machine Is Suitable for Slitting Paper Jumbo Roll Materials From Big Size To Small Size, It Is High Effective Converting Machine For Paper Bag
Making Machine.
Ω Use Round Slitting Knife.
Ω With Auto Length Counting System.
Ω Unwind and Rewind with Tension Control.
Ω Unwind with the EPC Control System.
Ω Unwind and Rewind using the Air Shaft. Ω Electrical Parts use Schneider Brand. Ω Unwind Shaft Type Auto Loading.
Ω Optional: Unwind Shaft-less with Auto Loading.
Ω Optional: Straight Slitting Knife.
Ω
| Model | KTSM-H150P/ 1300 | KTSM-H150P/ 1600 |
| Max. Raw Material Width | 1200mm (47.2") | 1500mm (59") |
| Max. Unwind Diameter | Φ1200mm (47.2") | Φ1200mm (47.2") |
| Max. Rewind Diameter | Φ800mm (31.5") | Φ800mm (31.5") |
| Min. Slitting Width | 30mm (1.18") | 30mm (1.18") |
| Max. Slitting Speed | 150m/min | 150m/min |
| Error | <0.5mm | <0.5mm |
| Paper Core Inner Diameter | 76mm/152mm (3"/6") | 76mm/152mm (3"/6") |
| Total Power | 11kw | 12kw |
| Machine Weight | 3000kg | 3500kg |
| Machine Size (LWH) | 3800 x 2800 x 1800mm | 3800 x 3100 x 1800mm |
| Machine Power | 3 Phase 220 / 380 / 440v 50/60Hz | |
