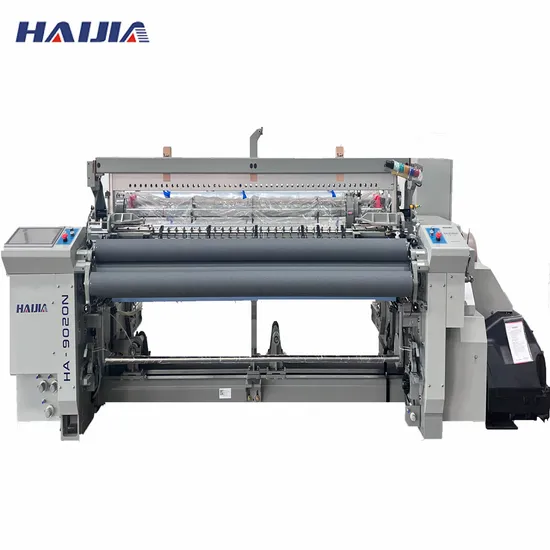

High Efficiency Double Nozzles Dobby Shedding Ha-9020 Air Jet Loom Machine

Product Description

Product Parameters

NO.	Item	Technical Parameters
1	The Effective reed width(cm)	Normal reed width: 0---65cm(≤230cm); 0---85cm(>230cm)
2	Starting mode	Motorized spindle; Super start motor drive(Optional)
3	Motor capacity	2.2KW, 2.7KW, 3.0KW, 3.7KW, 4.5KW, 6.0KW
4	Running operation	One-hand operation button; Two-hand operation button(Optional)
5	Pump	Single pump; Double pump(Optional)
6	Nozzle	Normal Nozzle, "U" shaped Nozzle
7	Crank shedding	4-piece type; 6-piece type; 8-piece type(Optional)
8	Positive cam shedding	6,8,10 piece type,12,14 piece type(Optional)

Weaving Machine / HA-N Series Air Jet Loom
HA-N series Air jet weaving has been extensively strengthened in the fuselage;
Adapt to the weaving of most fabrics; such as air jet cotton fabric, viscose, and textiles for home applications , etc.
It has also been greatly improved in terms of waterproofing, and can be widely used in the weaving of various fabrics. The maximum speed can reach 1000RPM.
Taking 75D fabric as an example, the highest weft density is 80 shuttles/cm (205 threads per inch)
Product Description
Company Profile
HAIJIA Machinery was founded in 1995 and headquarter located in Qingdao, China. Nearly 30 years of continuous development,With the unremitting effort, our products have been exported to more than 30 countries around the world . At present, Haijia Machinery has established an internationally competitive group enterprise integrating R&D, design, manufacturing, marketing and after-sales service. we has two smart manufacturing plants,one big auxiliary plants, six offices at home and abroad and a Zhiduoduo SaaS service platform for textile machinery spare parts . We have R&D department including more than 100 engineers which are improving and engaging our support range. with more than 600 employees ,cover 150,000 sqm and an annual production capacity of over 20,000 units.
Packaging & Shipping
Our Advantages
FAQ
(1) Q: Are you a manufacturer or agency?
A:We are a comprehensive enterprise integrating independent r&d, manufacturing, final assembly, marketing and after-sale service, which can meet the needs of diversified customers and provide them with high-quality and affordable products and all-round services. (2) Q: How about the quality?
A: Electric control and major raw materials are provided by listed companies, and key components are developed by our own research and development team. We have high-precision processing centers such as mazak, hyundai dri WIR and HARTFORD, as well as high-precision testing instruments such as three-coordinate to guarantee the quality of our products.
(3) Q: How's the after-sale service?
A: We have more than 20 years of professional service engineers in textile machinery industry, if you need our first time to serve you.
