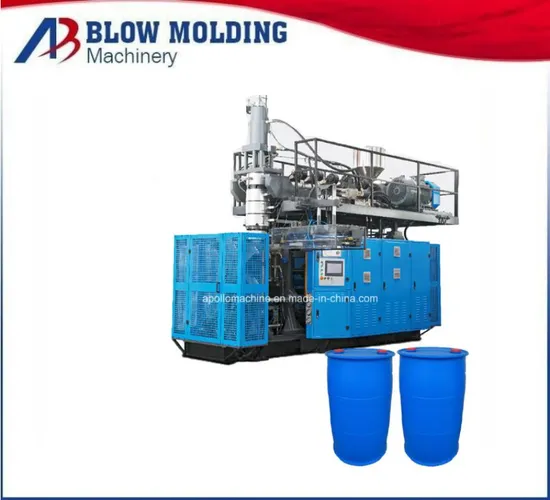

55 Gallon Plastic Drum 2 Ring Barrel Making Machine 200L 210L 230L Plastic Drum Blow Molding Machine
| US$56,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ABLD120
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Max.Product Volume
8L
Screw Diameter
75kw
Screw Drive Power
22kw
Screw Heating Capacity
7-8kw
Output of HDPE
100 Kg/H
Oil Pump Drive Power
7.5kw
Clamping Force
80kn
Max.Size of Mold
400*430mm
Template Size
380*420mm
Mold Stroke
170-520mm
Transport Package
Film
Specification
6.8Ton
Trademark
APOLLO
Origin
Jiangsu China
HS Code
847730100
Production Capacity
10month
Product Description
Company ProfileProduct Description
Die head: Center-feed die head Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating. Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well Blowing device: with upper blowing type Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle. Electric controlling system: Adopt programmable controller made in Mitisubishi , Japan. Every electric component is of world-famous brand. Product Parameters
| Suitable material | PE.PP,PVC,PS,HDPE,so on | ||
| Max volume | Plastic Products | ||
| Weight | 20 T | ||
| system | Specification | Parameters | Note |
| Plasticizion system | Summarize | High efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature | |
| Reducer | Hard finishing,High intension,Low noise reducer | ||
| Screw | ∮100 mm,L/D ratio 24, 38CrMoALA | Cooling system available | |
| Plasticization | 100 Kg/H | HDPE | |
| Heating Zone | 4 Aluminum Heater | Automatic heating | |
| Heating power | 12 KW/H | ||
| Extrusion Motor | Three phase asynchronous motor (380V,50HZ) | ||
| Cooling Fan | 4 zone | Automatic cooling | |
| Extrusion system | Summarize | High-grade alloy steel, center feeding | |
| Die head number | 3 | ||
| Center distance of die heads | / | ||
| Max die mouth | ∮80mm | ||
| Heating zone | 4 Stainless steel heating cycle | ||
| Heating power | 5~7KW | ||
| Clamping system | Summarize | High intension, rigidity, center mold locking, stable mould opening and clamping system | |
| Clamping force | 120KN | ||
| Template distance | 390X420mm | ||
| Max mould size | 400X420mm | ||
| Electric system | Summarize | PLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available) | Japanese Mitsubishi PLC system |
| Operate interface | Touch screen, automatic self-diagnose alarm system | ||
| Temperature control | Automatic temperature control module | ||
| Movement control | Japanese Mitsubishi, Chinese/English Version | ||
| Electric protection | Ampere overload, electric short circuit self-protection function | ||
| Hydraulic system | Summarize | Multiple function hydraulic integrated block Proportional control, high efficient | |
| Oil pump motor | Three phase asynchronous motor (380V/220V,50/60HZ) | ||
| Oil pump | Imported double pump | ||
| Valves | Imported oil pump valves and connections | ||
| Oil pipes | Double layer overpressure resistant | ||
| System pressure | 60Kg/cm² | ||
| Cooling system | Separate water cooling cycle, oil cooler cooling system | ||
| Pneumatic system | Summarize | Taiwan AIRTAC pneumatic system | |
| Air pressure | 0.8 Mpa | ||
| Air displacement | 0.6M3/min | ||
| Electromagnetic valve | Taiwan AIRTAC | ||
| Cooling system | Summarize | Separate cooling system of mould, barrel and oil system | |
| Cooling medium | Water | ||
| Water flow | 80L/min | ||
| Water pressure | 0.3-0.6MPa | ||
Electronic Parts | |
| Name | Trader |
| Micro computer control system | Japanese MITSUBISHI |
| Temperature Controller | Japanese MITSUBISHI |
| Auxiliary Relay | OMRON |
| contactor | Schneider from France |
| Electric motor | Three phase 220V or 380V |
| Power Source | TAIWAN MEANWELL |
| Transducer | ABB from Japan |
| Hydraulic Parts | |
| Name | Trader |
| Oil pump | TAIWAN HIGH-TECH |
| Valve | YUKEN |
| Oil pump and connection | YUKEN |
| Sealed part | HALLITE |
| Air Control System | |
| Name | Trader |
| Cylinder | AIRTAC |
| Air Valve | AIRTAC |
