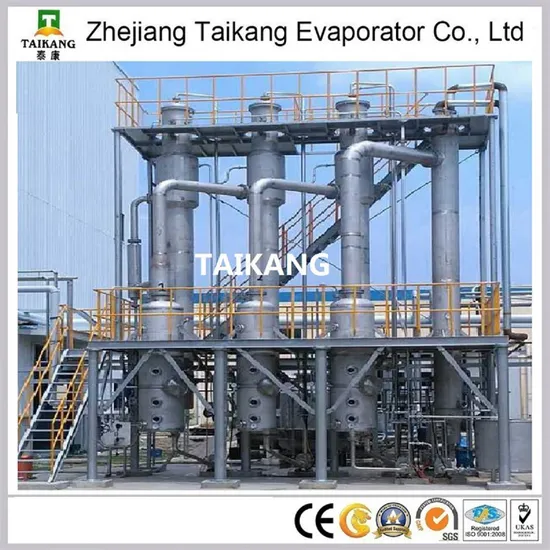

Strong Anti-Scarring Ability Three-Effect Ammonium Chloride Crystallizing Evaporator

Product Description

Product Description

Sr.No	Evaporation Rate(kg/h)	Feed Density	Heat Area	Condenser	Cooling Water	Weight(KG)	Power	Material
1	1000	1-3%	34,21,21	22	30T/H	7000	31.5KW	316L
2	1477	1.5%	52,33,33	34	45T/H	9000	42.5KW	316L
3	1490	15%	54,33,33	34	45T/H	9000	55KW	316L
4	1500	2-5%	51,32,32	33	45T/H	9000	35.5KW	316L
5	1584	11%	53,33,33	34	45T/H	8000		304
6	1615	5-6%	57,35,35	36	48T/H	7500	40.5KW	TA2,316L

Products & Equipment
Three-effect Crystallizing Evaporator
TANG03-(0.5T/h-300T/h) Evaporation Capacity
Features
The continuous concentration and crystallization evaporator is manufactured by introducing the most advanced evaporator abroad, and can be complete with different crystallizer.Featuring hign heat transfer coefficient, great evaporation capacity,minimized power consumption,low motor power,small space occupation,,simple construction,and automated cleaning, this unit is different from traditional evaporators in china with respect to their structuye and process flow,and is one of the most power-efficient and most advanced evaporating apparatuses in china.
Evaporating Apparatus Configuration and Major Compponents
This unit comprises mainly the heating chamber,separation chamber, crystallizer, condenser,vacuum pump,defoaming device,cleaning system,electric cabinet, platform, and all piping, gages and valves.
